Hose Fittings 937-558-2497

38NS 3/8" NPT male X 1/2" NPT female (non-swivel)

Model #
38NS
3/8 MNPT X 1/2 FNPT,
non-swivel
316 Stainless Steel

For the Junior S151JR Nozzles

5/8" HOSE X 3/8" NPT

MODEL #
625SJR

MODEL #
625SJRSS

Hose Fitting for the S151
Junior Series Spray Nozzle
3/8" NPT X 5/8" Hose Barb
360 Swivel
(Brass and Stainless Steel)

Hose Fitting for the S151
Junior Series Spray Nozzle
3/8" NPT X 5/8" Hose Barb
360 Swivel
(All Stainless Steel)

3/4" HOSE X 3/8" NPT

MODEL #
75SJR

MODEL #
75SS JR

Hose Fitting for the S151
Junior Series Spray Nozzle
3/8" NPT X 3/4" Hose Barb
360 Swivel
(Brass and Stainless Steel)

Hose Fitting for the S151
Junior Spray Nozzle 3/8"
NPT X 3/4" Hose Barb 360
Swivel
(All Stainless Steel)

3/4" THREAD GARDEN HOSE X 3/8" NPT





	MODEL # GHTJR
		MODEL # GHTJRSS

	Adaptor for the S151 Junior Series Spray Nozzle 3/8" NPT X 3/4" Female Garden Hose Thread (FGHT) 360 Swivel (Brass and Stainless Steel)

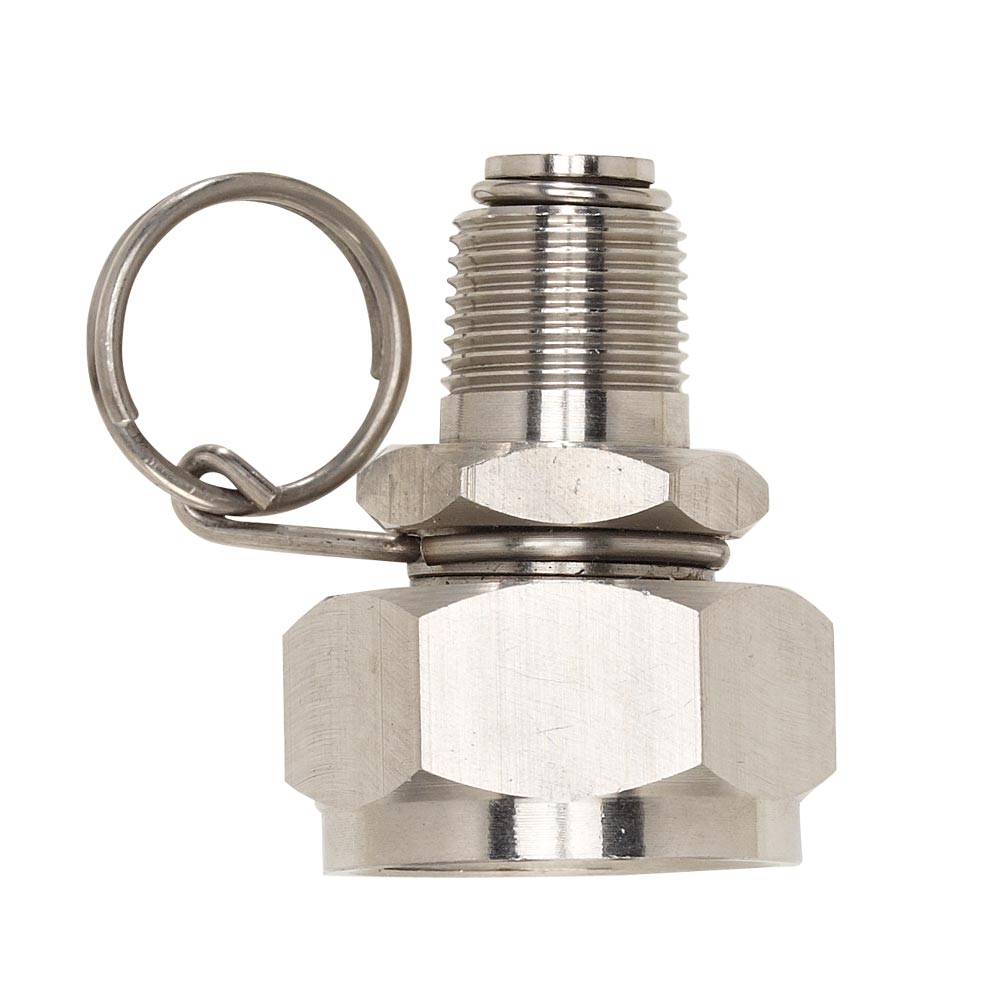

		Adaptor for the S151 Junior Series Spray Nozzle 3/8" NPT X 3/4" Garden Hose Thread 360 Swivel (All Stainless Steel)

WASHER


	MODEL # WASHERGHTS

		Rubber Washer for the all Garden Hose Series Adaptors

For Full Size S151 Nozzles

1/2" HOSE
X
1/2" NPT

MODEL #
50S

MODEL #
5 0 S S S

Hose Adaptor for the S151
Series Spray Nozzle 1/2" NPT X
1/2" Hose Barb 360 Swivel
(Brass and Stainless Steel)

Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 1/2"
Hose Barb 360 Swivel
(All Stainless Steel)

5/8 " HOSE
X
1/2" NPT

MODEL #
6 25NS

MODEL #
6 25S

MODEL #
625SSS

\Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 5/8"
Hose Barb Non Swivel
(Plated Steel)

Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 5/8"
Hose Barb 360 Swivel
(Brass and Stainless Steel)

Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 5/8"
Hose Barb 360 Swivel
(All Stainless Steel)

3/4" HOSE
X
1/2" NPT

MODEL #
7 5S

MODEL #
7 5SSS

MODEL #
75 N SS

Hose Fitting for the S151 series
Spray Nozzle 1/2" NPT X 3/4"
Hose Barb Non Swivel
(All Stainless Steel)

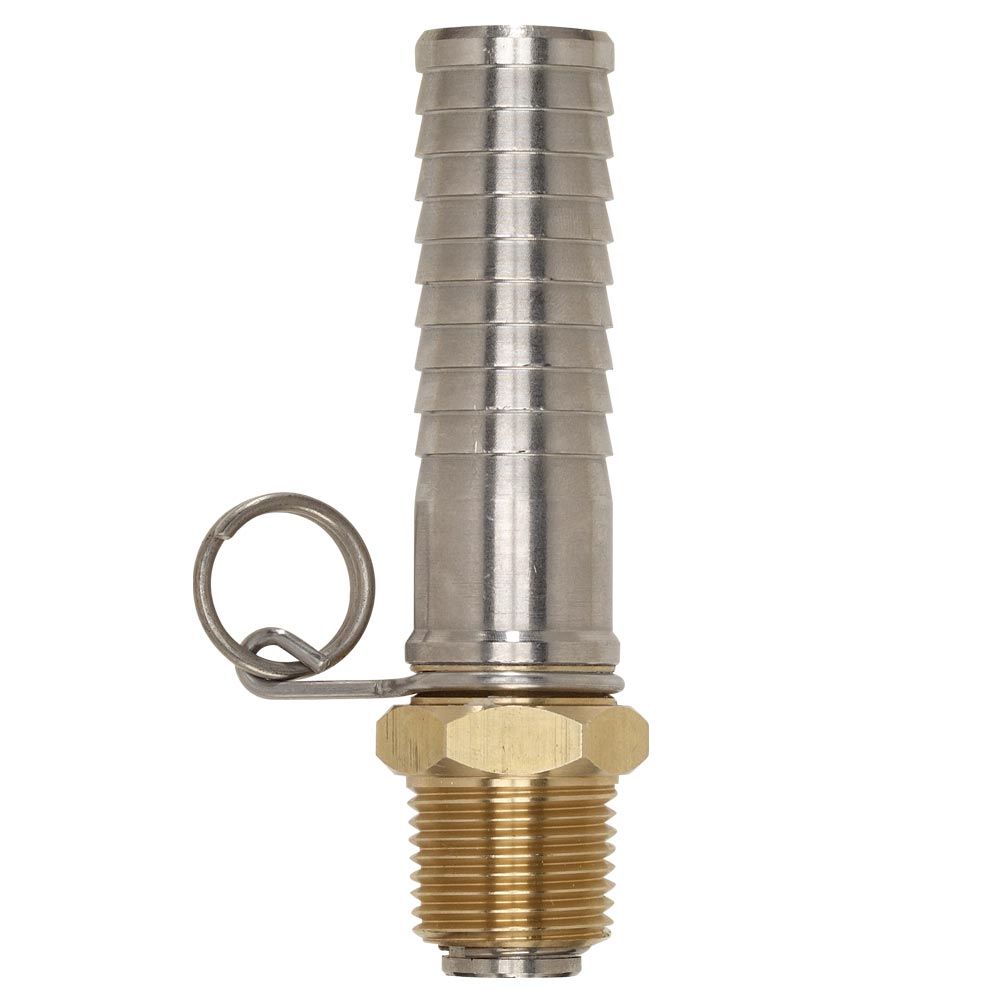

Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 3/4"
Hose Barb 360 Swivel
(Brass and Stainless Steel)

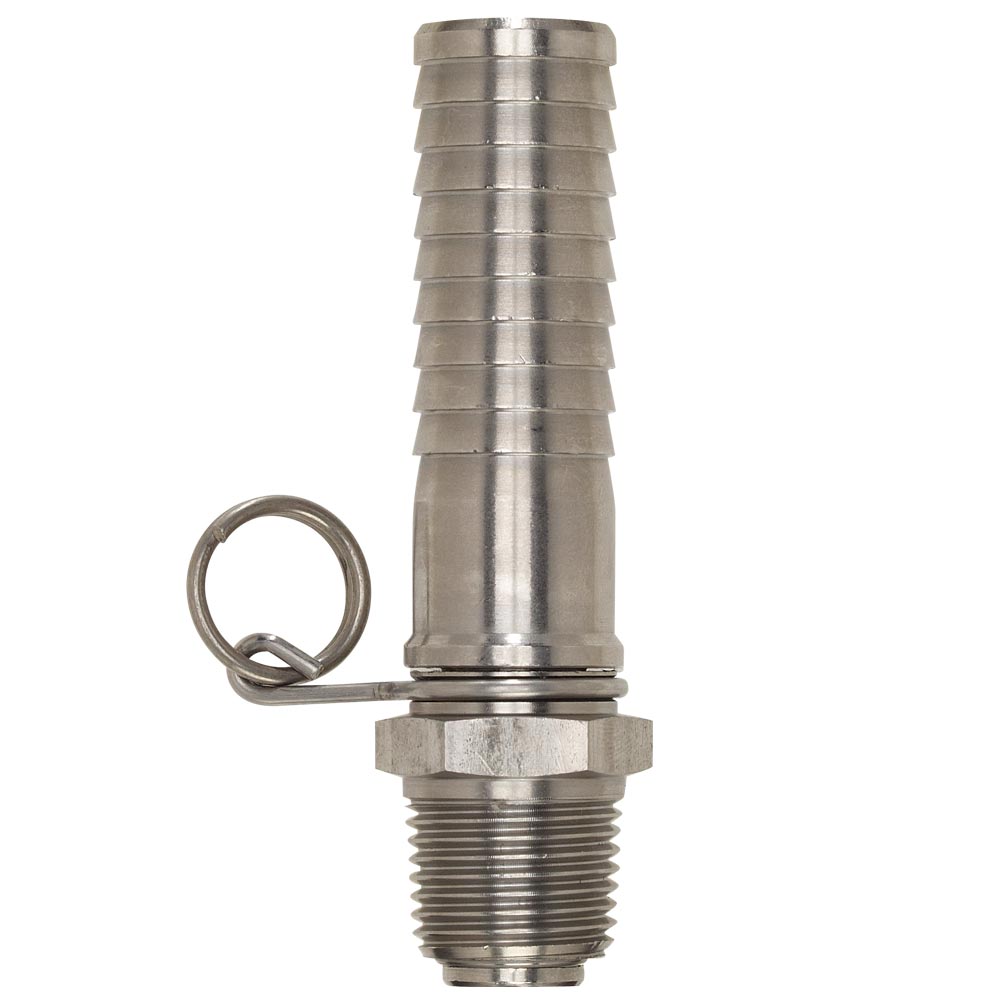

Hose Fitting for the S151 series
Spray Nozzle 1/2" NPT X 3/4"
Hose Barb 360 Swivel
(All Stainless Steel)

3/4" THREAD
SWIVEL
GARDEN
HOSE
X
1/2" NPT

MODEL #
G HTS

MODEL #
GHTSSS

MODEL #
75NS

Hose Fitting for the S151 Series
Spray Nozzle 1/2" NPT X 3/4"
Hose Barb Non Swivel
(Plated Steel)

Adaptor for the S151 Series
Spray Nozzle 1/2" NPT X
3/4" Female Garden Hose
Thread (FGHT) 360 Swivel
(Brass and Stainless Steel)

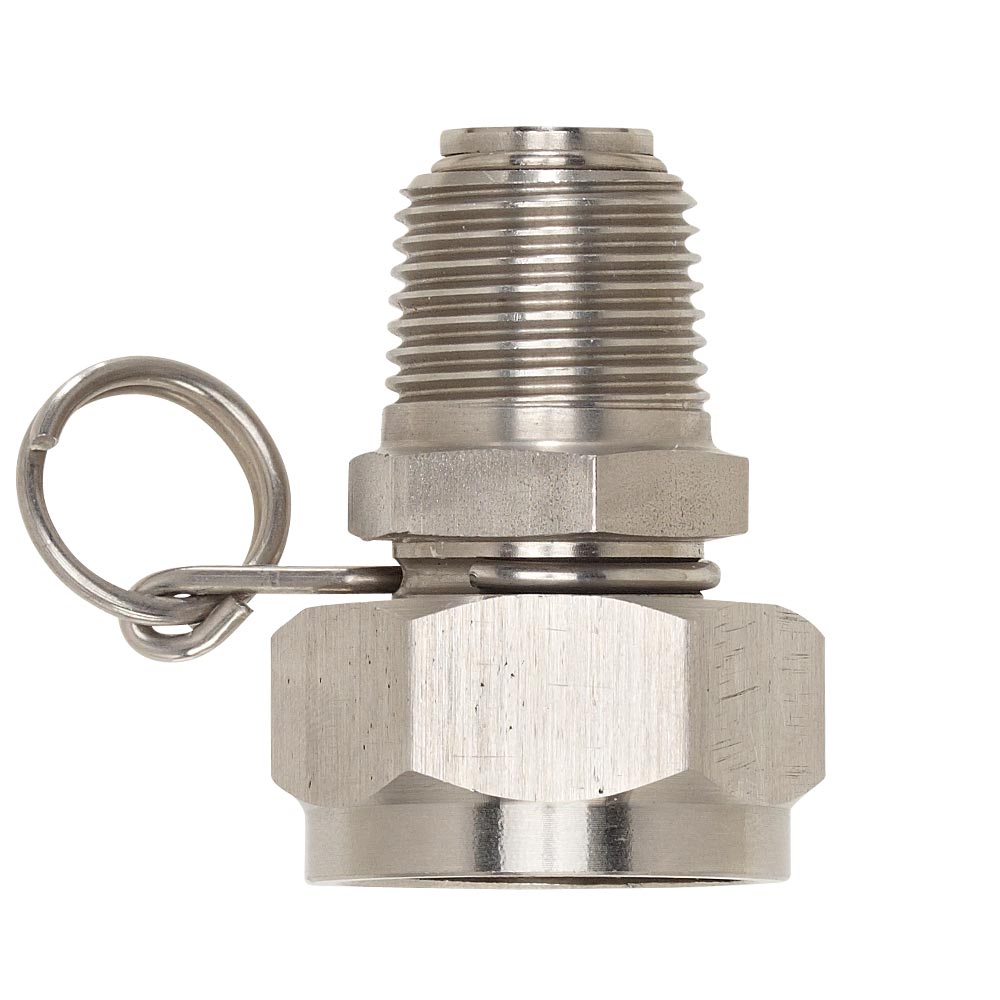

Adaptor for the S151 Series
Spray Nozzle 1/2" NPT X 3/4"
Female Garden Hose Thread
(FGHT) 360 Swivel
(ALL Stainless Steel)



			5/8" HOSE X 3/4" THREAD GARDEN HOSE BRASS



MODEL # GHTF		MODEL # G HTM

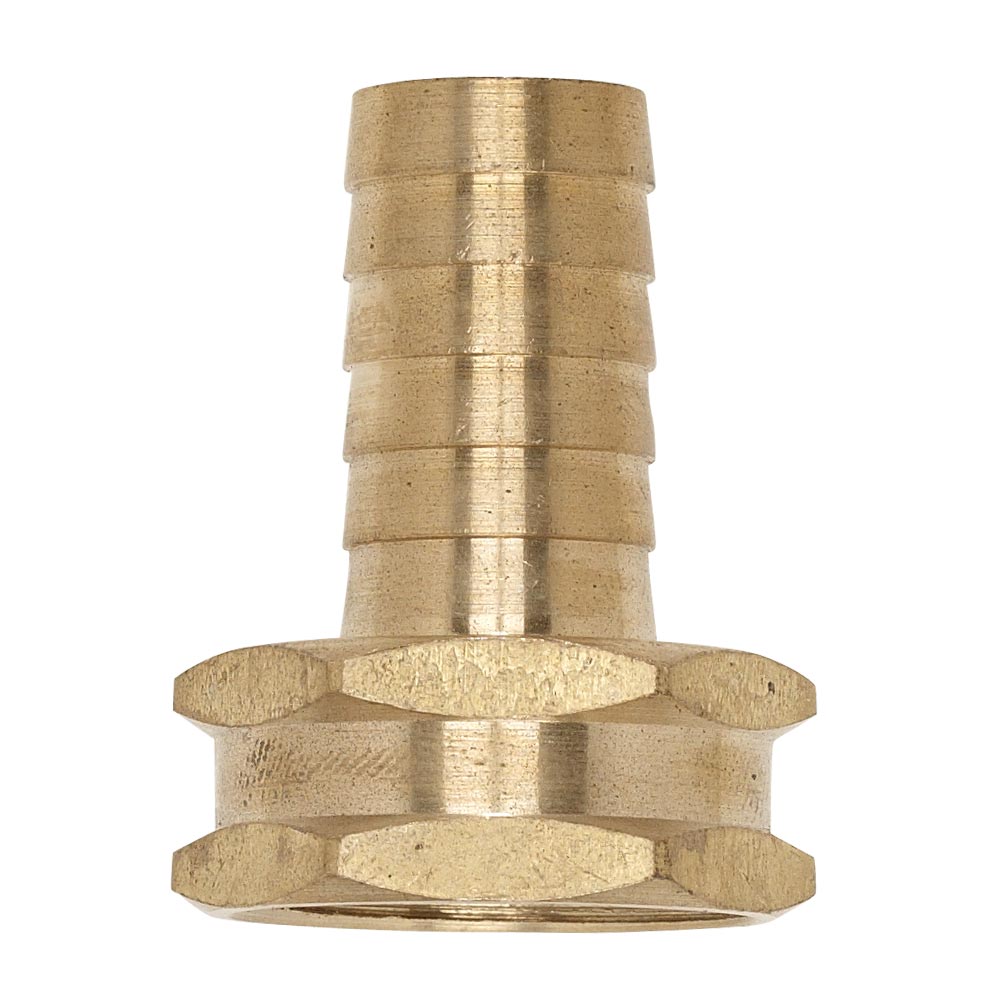

Hose fitting for the S151 Series Spray Nozzle. 5/8" Hose Barb X 3/4" Female Garden Hose Thread (Brass)	Hose Fitting for the S151 Series Spray Nozzle. 5/8" Hose Barb X Male 3/4" Garden Hose Thread (Brass)


			5/8" HOSE X 3/4" THREAD GARDEN HOSE STAINLESS STEEL
MODEL # GHTFSS		MODEL # GHTMSS

Hose fitting for the S151 Series Spray Nozzle. 5/8" Hose Barb X 3/4" Female Garden Hose Thread (Stainless Steel)	Hose Fitting for the S151 Series Spray Nozzle. 5/8" Hose Barb X Male 3/4" Garden Hose Thread (Stainless Steel)

Adapters and Hose Fittings

Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247

CLICK ANY IMAGE TO VIEW LARGER PHOTOS

Streamline Washdown Equipment, Inc.

Like us on facebook!

CALL (937) 558-2497

Hose Repair Components

MODEL #
SG12

MODEL #
SG34

MODEL #
FERRULE

Spring Guard 1/2 NPT X 5/8
Hose Barb For Hose
Assemblies, Stainless Steel Barb
through the Nut, Stainless Steel
Spring and Brass Nut

Spring Guard 3/4 NPT X 5/8
Hose Barb For Hose Assemblies.
Stainless Steel Barb Shank and
wetted path, Stainless Steel
Spring and Brass Nut and adapter

Ferrule Heavy-Duty Brass
Construction For Crimping
Hose Assemblies

MODEL #
SG12SS

MODEL #
SG34SS

MODEL #
FERRULES

MODEL #
BAND STRAPS

Spring Guard 1/2 NPT X 5/8
Hose Barb For Hose Assemblies
(All Stainless Steel)

Spring Guard 3/4 NPT X 5/8
Hose Barb For Hose Assemblies
(All Stainless Steel)

Ferrule Stainless Steel
Construction For Crimping
Hose Assemblies

Stainless Steel Strap/Hose
Clamp 11/4 X 5/8 X 1/4 For
Hose Assemblies over 50 feet

SG12 and SG34 come with spring guard as shown

Also available - replacement hose
