Spiralite W187
CORRUGATED POLYURETHANE VAPOR
RECOVERY HOSE WITH STATIC WIRE

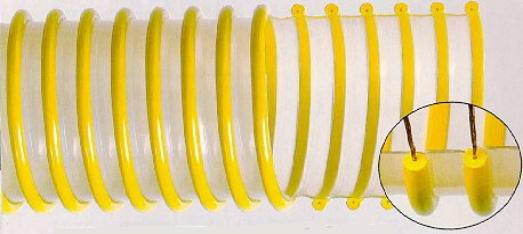

HOSE APPEARANCE/CONSTRUCTION:
Clear Polyurethane tube with Yellow PVC
helix and static wire.


BENEFITS:
-Lightweight and highly flexible.
-Resistant to chemical vapors and light
abrasives
-Static conductive wire.


GENERAL APPLICATIONS:
-Vapor recovery for use with Spiralite 5000
-Ducting dust and light abrasives.


TEMPERATURE RANGE:
-30°F TO +140°F


STANDARD LENGTHS:
1-1/2" thru 6" available in 100'
8" to 50'
Nominal size
inch
1-1/2"
2"
2-1/2"
3"
4"
5"
6"
8"
Appox O.D.
inch
1.88
2.43
2.96
3.54
4.56
5.51
6.52
8.75
Recom. Min. Bend
Radius at 68°F
inch
1.5"
2"
2.5"
3"
4"
5"
6"
10"
Approx. Wt.
lbs./ft.
.36
.48
.61
.69
.92
1.136
1.24
2.42
