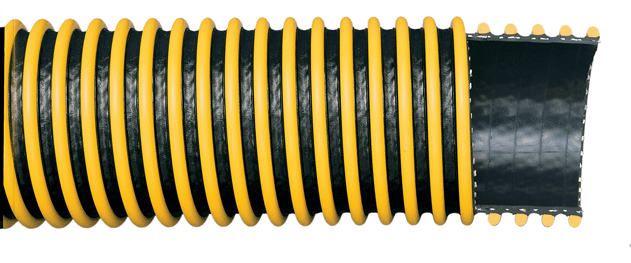

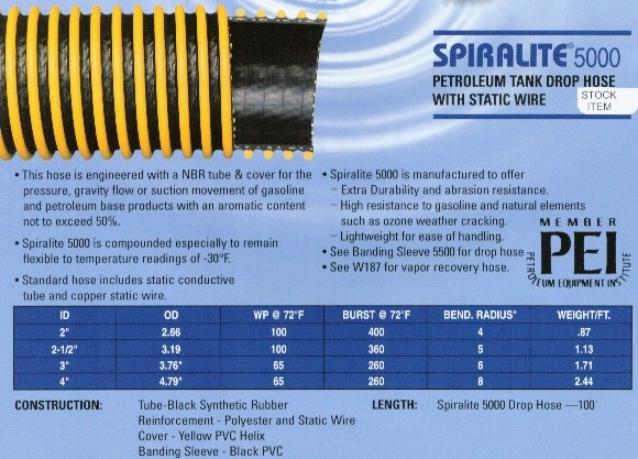

Spiralite 5000
PETROLEUM TANK DROP HOSE WITH
STATIC WIRE


HOSE APPEARANCE/ CONSTRUCTION:
-This hose is engineered with a NBR tube &
cover for pressure, gravity flow or suction
movement of gasoline and petroleum
products with an aromatic content not to
exceed 50%.


-Spiralite 5000 is compounded especially to
remain flexible to temperature readings of
-30°F.


-Standard hose included static conductive
tube and copper static wire.


-Spiralite 5000 is manufactured to offer extra
durability. High resistance to gasoline and
natural elements such as ozone weather
cracking. Light weight for ease of handling.


-See Banding Sleeve 5500 for drop hose


-See
Spiralite W187 for vapor recovery hose.
Nominal size
inch
2"
2-1/2"
3"
4"

Appox O.D.
inch
2.66
3.19
3.76
4.79

W.P. @ 72°F
PSI
100
100
65
65

Burst at 72°F
in/HG
400
360
260
260

Recom. Min. Bend Radius
inch
4
5
6
8

Approx. Wt.
lbs./ft.
.87
1.13
1.71
2.44
