MAXIMUM TEMPERATURE: 200°F MAXIMUM PRESSURE: 150 PSI Flow Rate: 8.1 GPM @ 150 PSI Weight: 2.1 lbs
Half the weight of our Standard Stainless Steel Nozzle with adaptors
Model (S151JRSS) Junior Stainless Steel Series Spray Nozzles are designed and constructed for use on corrosive applications and DI water
where bronze and aluminum are not suitable. The body and barrel assembly which contains all internal working parts are 300 series stainless
steel. Although smaller than our standard stainless steel nozzle, its heavy-duty stainless steel construction will withstand the daily demand and
severe service conditions that exist in large industrial food processing environments. It offers the same exceptional cleaning capability with a
substantial reduction in gallons of water per minute used (GPM). A REAL WATER SAVER! It features a variable spray pattern that adjusts from a
soft spray to a solid stream simply by depressing the lever. You are assured of drip-tight shutoff upon release of the lever. The rear mounted
lever helps ease operation during extended periods of use and reduces finger cramping.
Half the weight of our Standard Stainless Steel Nozzle with adaptors
Model (S151JRSS) Junior Stainless Steel Series Spray Nozzles are designed and constructed for use on corrosive applications and DI water
where bronze and aluminum are not suitable. The body and barrel assembly which contains all internal working parts are 300 series stainless
steel. Although smaller than our standard stainless steel nozzle, its heavy-duty stainless steel construction will withstand the daily demand and
severe service conditions that exist in large industrial food processing environments. It offers the same exceptional cleaning capability with a
substantial reduction in gallons of water per minute used (GPM). A REAL WATER SAVER! It features a variable spray pattern that adjusts from a
soft spray to a solid stream simply by depressing the lever. You are assured of drip-tight shutoff upon release of the lever. The rear mounted
lever helps ease operation during extended periods of use and reduces finger cramping.
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247
Nozzles
Junior Stainless Steel Industrial Grade Spray Nozzle and adaptors

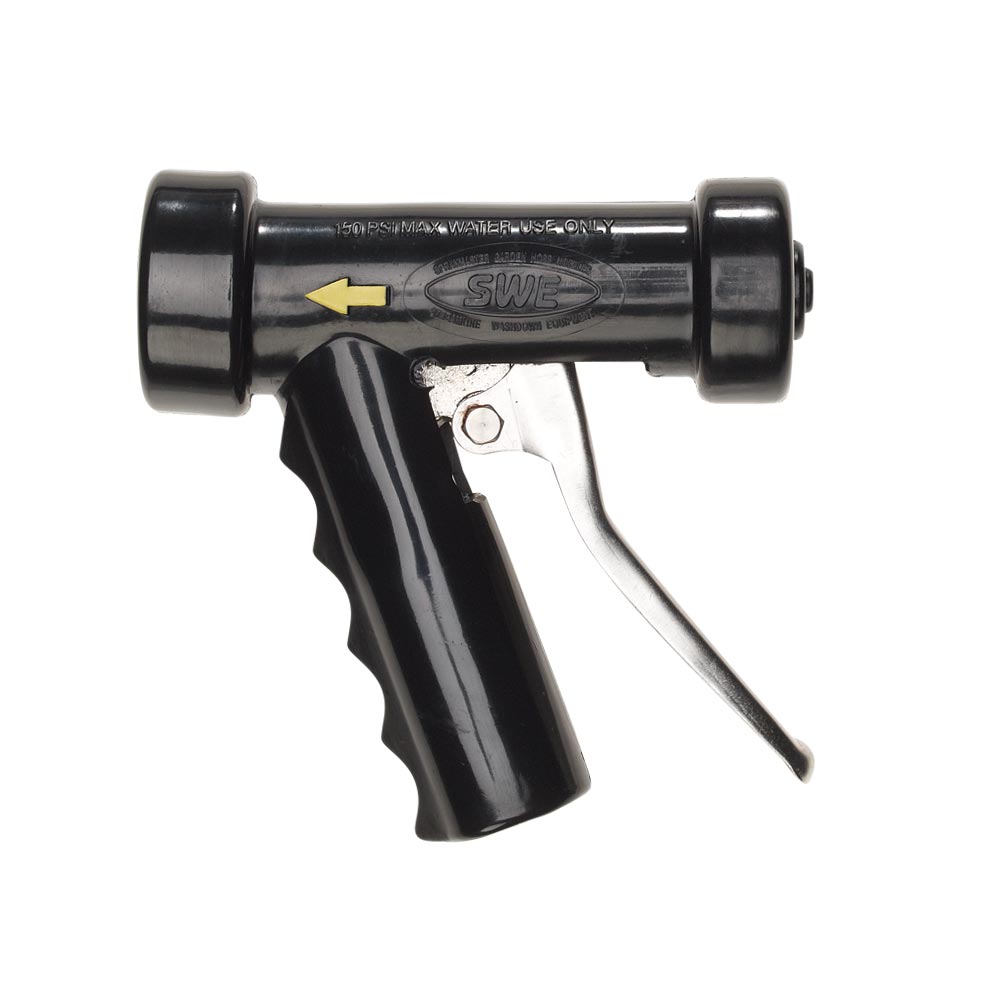

NOZZLE S151JRSSB 300
Series Stainless Steel
Construction Compact
Industrial Grade Spray
Nozzle with rear
mounted lever and
Heavy Duty Black
Rubber Cover
Series Stainless Steel
Construction Compact
Industrial Grade Spray
Nozzle with rear
mounted lever and
Heavy Duty Black
Rubber Cover
MODEL #
S151JRSSB
S151JRSSB

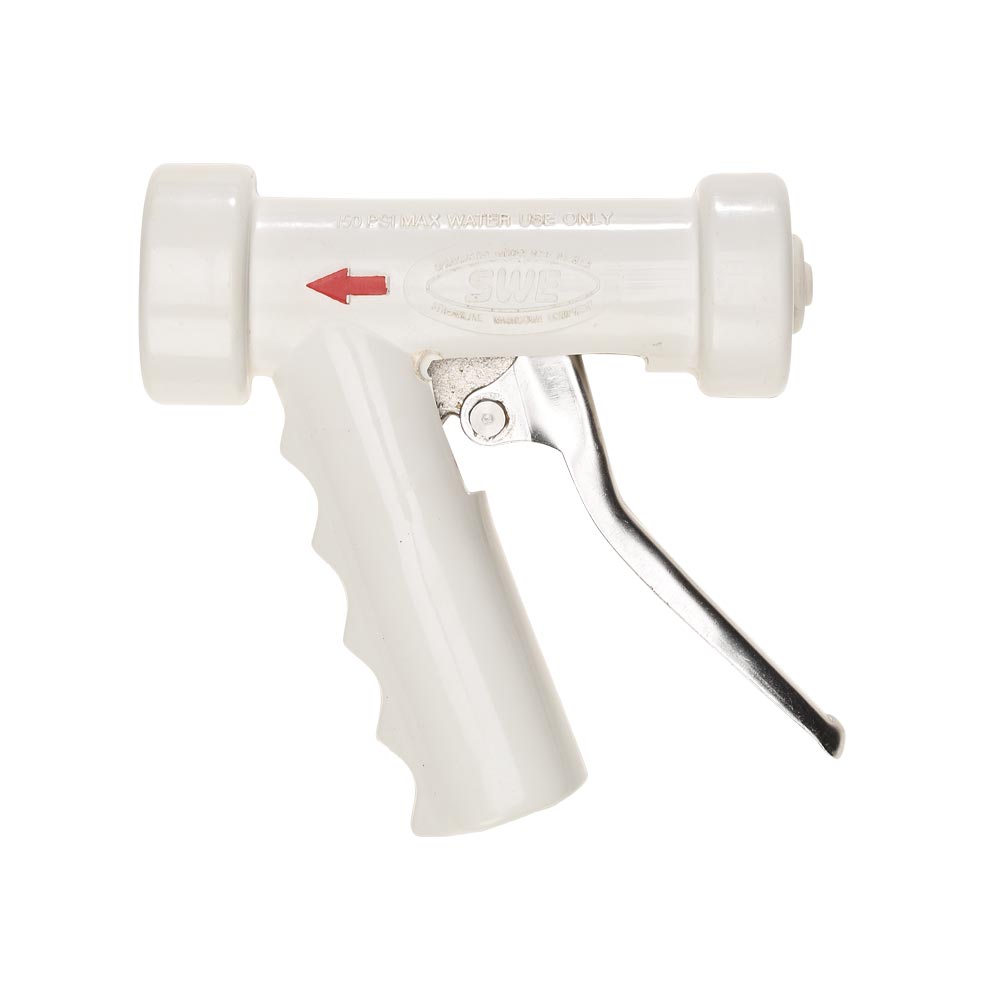

NOZZLE S151JRSSW 300
Series Stainless Steel
Construction Compact
Industrial Grade Spray
Nozzle with rear
mounted lever and
Heavy Duty White
Rubber Cover
Series Stainless Steel
Construction Compact
Industrial Grade Spray
Nozzle with rear
mounted lever and
Heavy Duty White
Rubber Cover
MODEL #
S151JRSSW
S151JRSSW

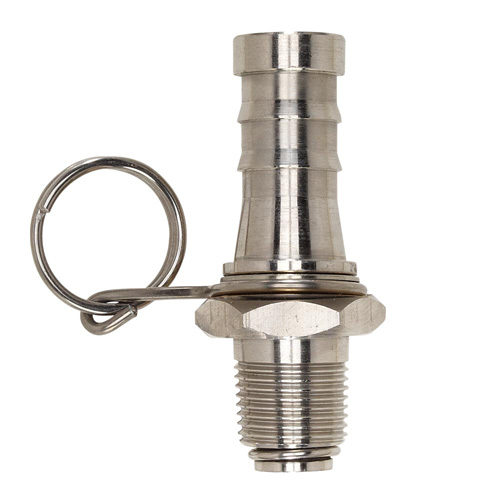

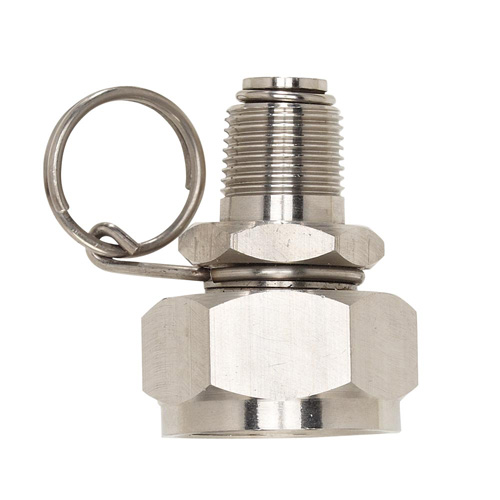

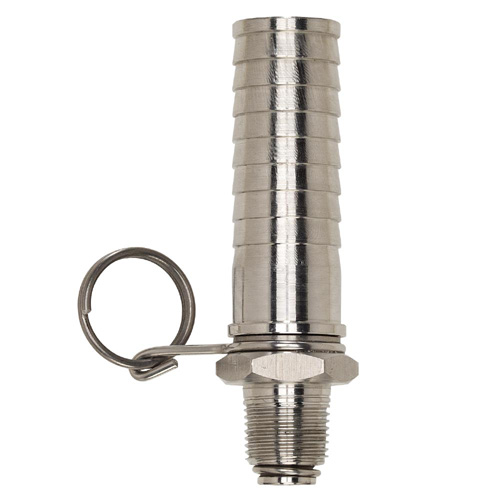

We offer swivel hose adaptors in several sizes to accommodate your needs. When used together with
our junior spray nozzle the swivel adaptor allows the nozzle to rotate 360 degrees independently of the
hose thereby promoting easier use of the nozzle and hose assembly and helps to eliminate twisting and
kinking. In addition, all adaptors are furnished with a lever lock ring that allows you leave the nozzle in
the open position simply by slipping the ring over the lever. This feature is ideal when you need to fill a
drum or barrel. Swivel hose adaptors are available in brass and stainless steel construction and in all
stainless steel. They are available for 5/8" and 3/4" I.D. hose as well as 3/4" Female Garden Hose
Thread. If you do not see an adaptor suited for your particular application, please call, fax or E-mail and
in most cases we can supply your needs.
our junior spray nozzle the swivel adaptor allows the nozzle to rotate 360 degrees independently of the
hose thereby promoting easier use of the nozzle and hose assembly and helps to eliminate twisting and
kinking. In addition, all adaptors are furnished with a lever lock ring that allows you leave the nozzle in
the open position simply by slipping the ring over the lever. This feature is ideal when you need to fill a
drum or barrel. Swivel hose adaptors are available in brass and stainless steel construction and in all
stainless steel. They are available for 5/8" and 3/4" I.D. hose as well as 3/4" Female Garden Hose
Thread. If you do not see an adaptor suited for your particular application, please call, fax or E-mail and
in most cases we can supply your needs.
Swivel Adaptors for the S151SS Junior Series Nozzle
|
|
|
|
|
|
Click here for a PDF Information Sheet
Flow Rate Data for the Model S151JR Nozzles
| A HEAVY DUTY NOZZLE DOESN'T HAVE TO BE BIG AND HEAVY. ALMOST HALF THE WEIGHT OF OUR STANDARD SIZE NOZZLE! |
Need adapters?
Streamline Washdown Equipment, Inc.
CLICK ANY IMAGE TO VIEW LARGER PHOTOS!
| This model is recommended for use on D. I. Water and other corrosive applications where bronze and aluminum are not suitable. |
| Click Here for the Repair manual to the S151JR Junior Nozzle |
JUNIOR NOZZLES 3/8" inlet
| CALL (937) 558-2497 |
 |  |  |  |  |  |  |
