MAXIMUM TEMPERATURE: 200°F MAX. HANDLING TEMPERATURE: 140°F FLOW RATE: 12.5 GPM @ 150 PSI
MAXIMUM PRESSURE: 150 PSI WEIGHT: 2.0 lbs.
Our (S151AL) Aluminum Series Spray Nozzles are almost half the weight of our Bronze Nozzles (S151). The aluminum
alloy body substantially reduces overall weight and is electroless nickel plated for additional corrosion protection. It
features a variable spray pattern that adjusts from a soft spray to a solid stream simply by depressing the lever. You
are assured of drip-tight shutoff upon release of the lever. The rear mounted lever helps ease operation during
extended periods of use and prevents finger cramping.
Stainless Steel Seats come standard on all of our Nozzles.
MAXIMUM PRESSURE: 150 PSI WEIGHT: 2.0 lbs.
Our (S151AL) Aluminum Series Spray Nozzles are almost half the weight of our Bronze Nozzles (S151). The aluminum
alloy body substantially reduces overall weight and is electroless nickel plated for additional corrosion protection. It
features a variable spray pattern that adjusts from a soft spray to a solid stream simply by depressing the lever. You
are assured of drip-tight shutoff upon release of the lever. The rear mounted lever helps ease operation during
extended periods of use and prevents finger cramping.
Stainless Steel Seats come standard on all of our Nozzles.
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247
MODEL #
S151ALB
S151ALB
NOZZLE S151ALB
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Black
Dura Nitrile Rubber Cover
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Black
Dura Nitrile Rubber Cover
MODEL #
S151ALR
S151ALR
NOZZLE S151ALR
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Red
Dura Guard Rubber Cover
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Red
Dura Guard Rubber Cover
MODEL #
S151ALW
S151ALW

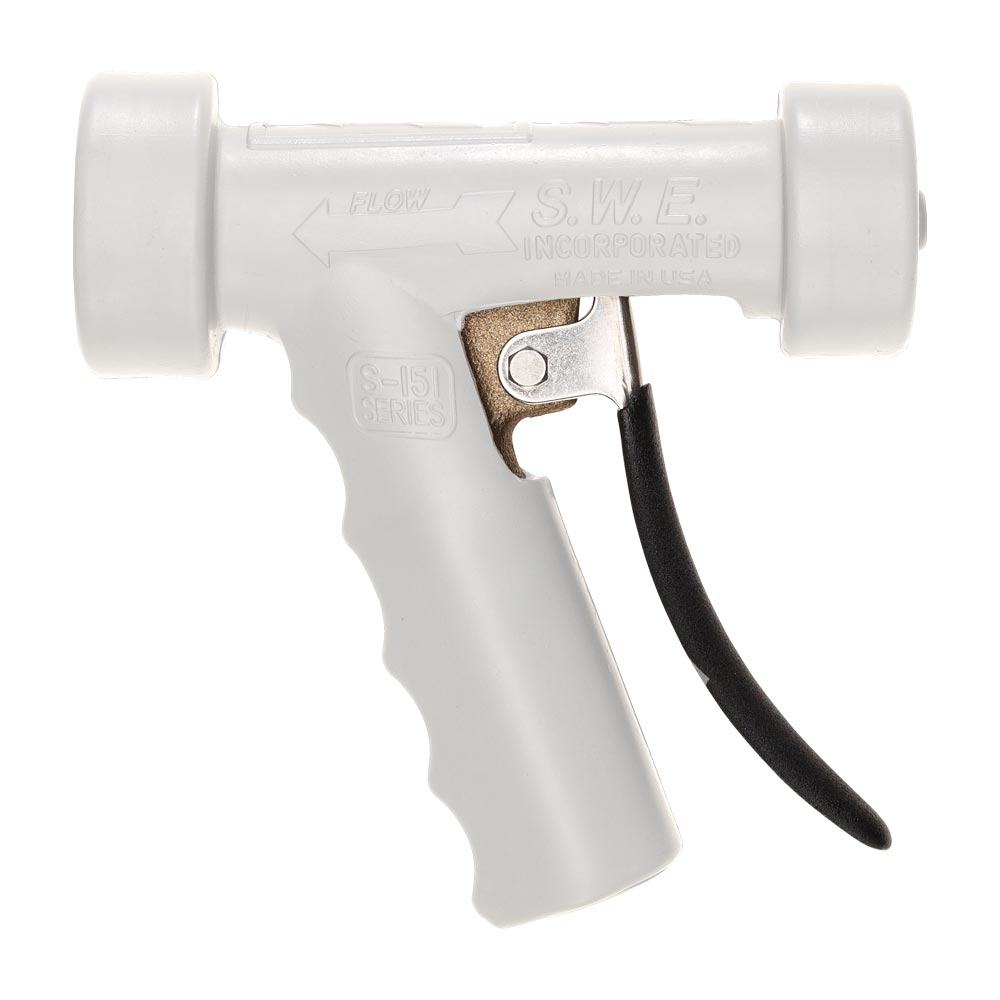

NOZZLE S151ALW
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and White
Dura Guard Rubber Cover
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and White
Dura Guard Rubber Cover
Nozzles
Aluminum Industrial Grade Spray Nozzle and Adaptors

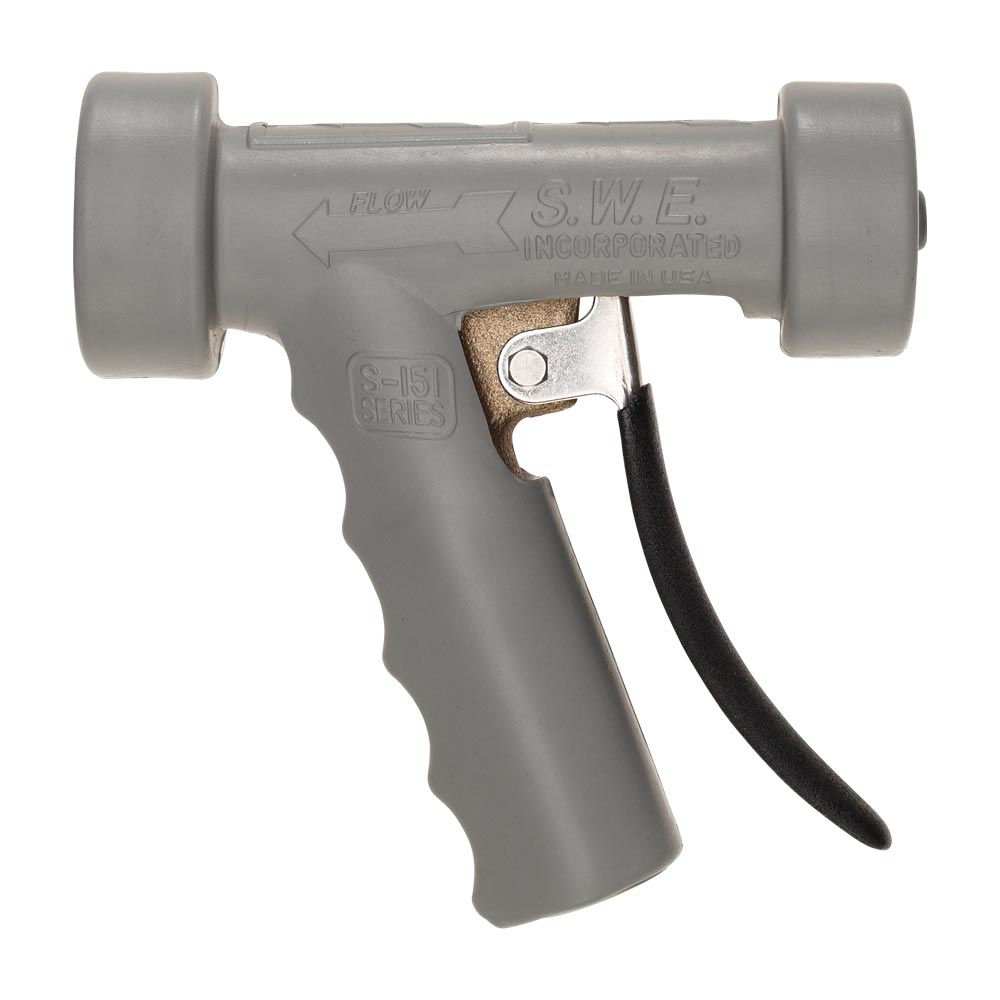

NOZZLE S151ALG
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Grey
Dura Guard Rubber Cover
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Grey
Dura Guard Rubber Cover
MODEL #
S151ALG
S151ALG
MODEL #
S151ALBL
S151ALBL

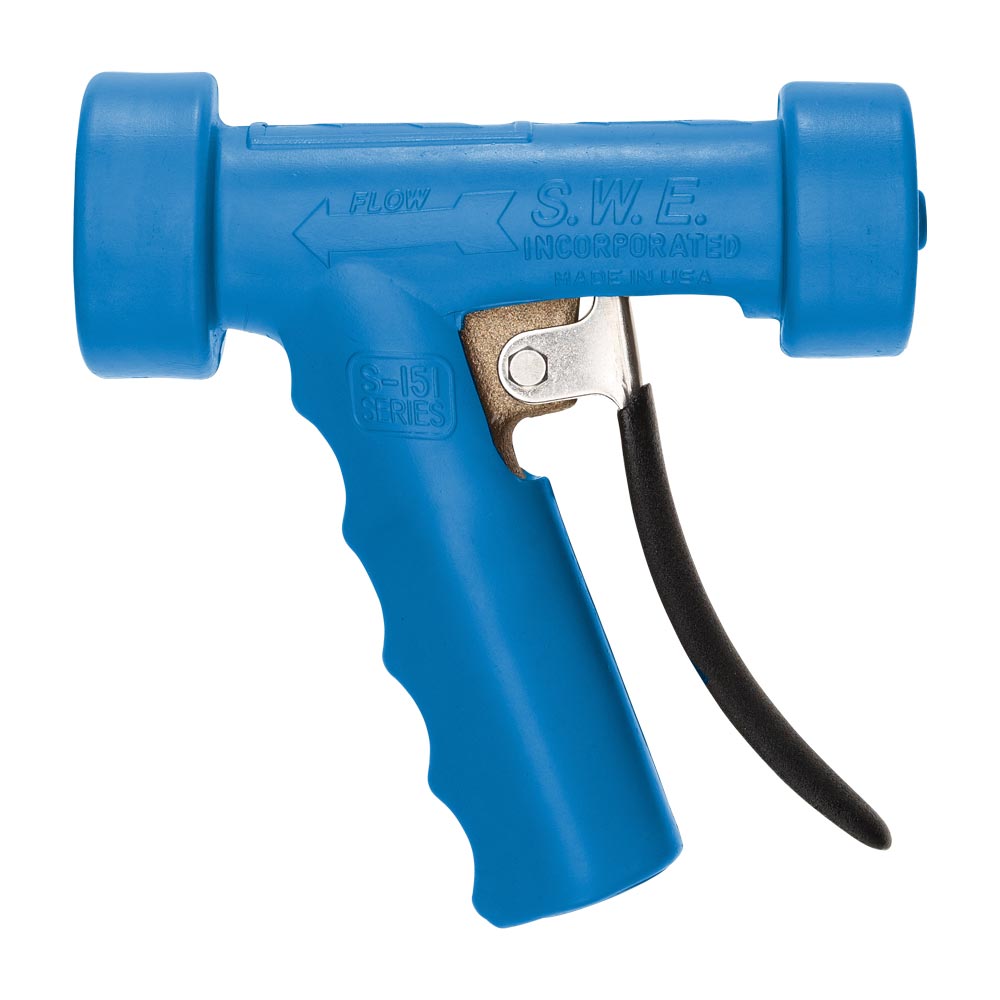

NOZZLE S151ALBL
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Blue
Dura Guard Rubber Cover
Aluminum Construction,
Industrial Grade Spray
Nozzle with rear
mounted lever and Blue
Dura Guard Rubber Cover

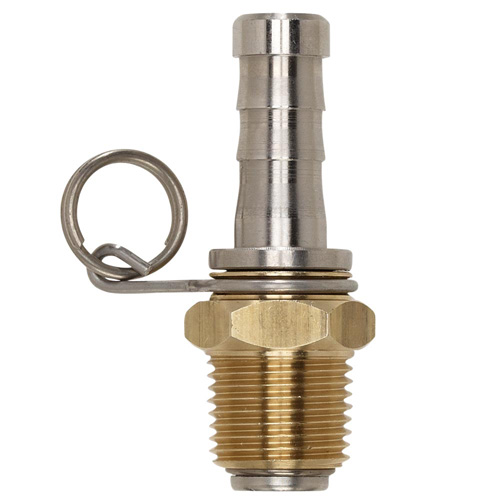

We offer hose adaptors in both swivel and non swivel configurations. When you attach our spray nozzle
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.
Adaptors for the S151 Series Nozzle
|
|
|
|
|
|
|
|
|
|
Need adapters?
Streamline Washdown Equipment, Inc.
Nitrile Cover for
oily
environments!
oily
environments!
| Click Here for the Repair Manual to the S151 Full Size Nozzle |
STANDARD SIZE ALUMINUM NOZZLES 1/2" inlet
 |  |  |  |  |  |  |
| CALL (937) 558-2497 |
