Washdown Nozzles 937-558-2497

Our Model (S151) Bronze Series Hot Water Spray Nozzles are designed and constructed to withstand the daily
demand and severe service conditions that exist in large industrial food processing environments. Its bronze and
stainless steel construction ensure reliable performance and extended product life.

It features a variable spray pattern that adjusts from a soft spray to a solid stream simply by depressing the lever.
You are assured of drip-tight shutoff upon release of the lever. The rear mounted lever helps to ease operation
during extended periods of use and reduces finger cramping.

Stainless Steel Seats come standard on all of our Nozzles.

Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247

MODEL #
S151B

NOZZLE S151B Bronze
and Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Black Dura Nitrile Rubber
Cover

MODEL #
S151R

NOZZLE S151R Bronze
and Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Red Dura Guard Rubber
Cover

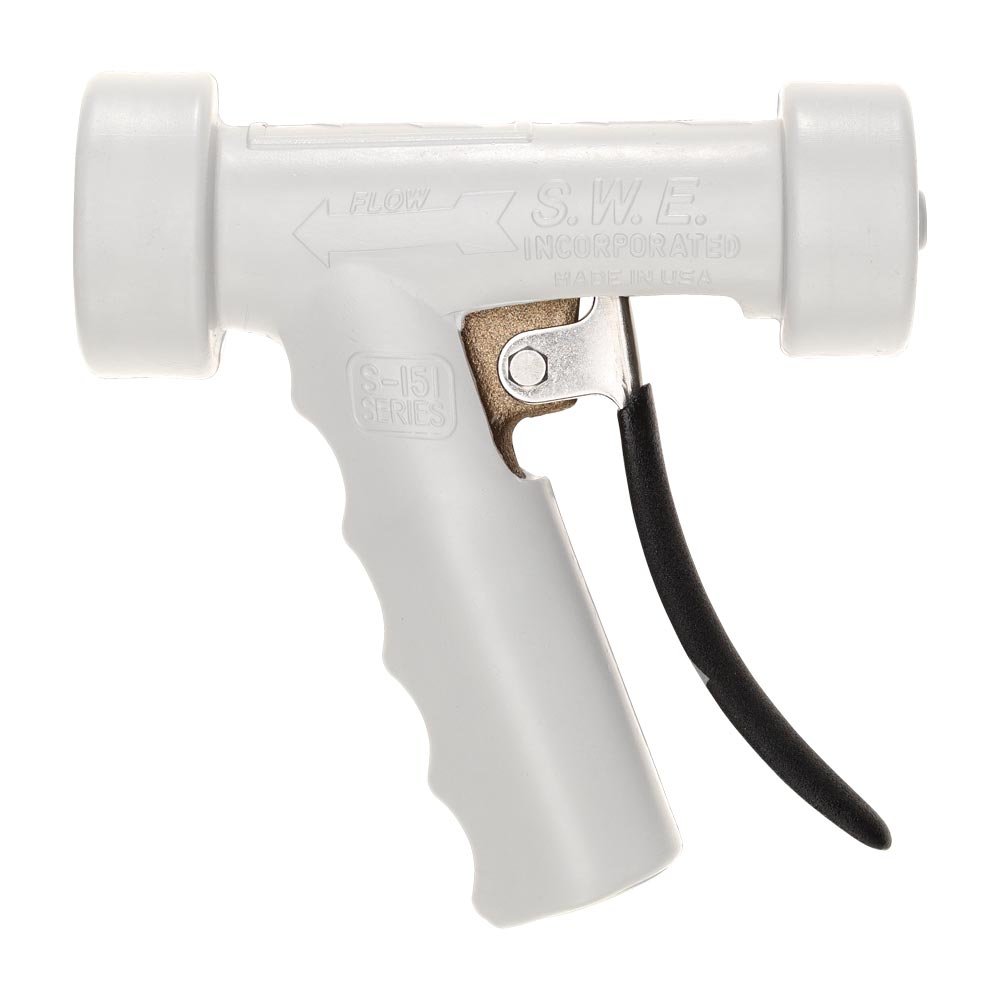

MODEL #
S151W

NOZZLE S151W Bronze
and Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
White Dura Guard
Rubber Cover

Return to Nozzles

Nozzles

Bronze Industrial Grade Spray Nozzle and Adaptors

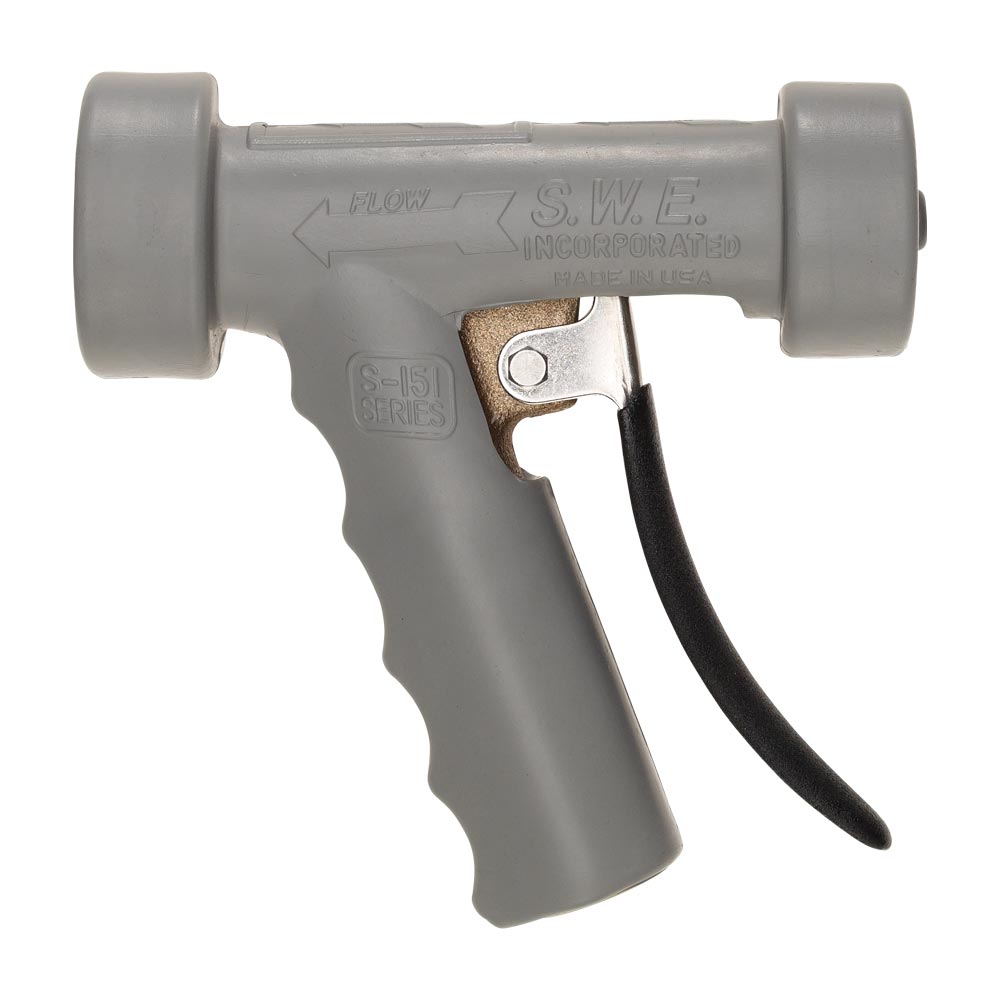

NOZZLE S151G Bronze
and Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Grey Dura Guard Rubber
Cover

MODEL #
S151G

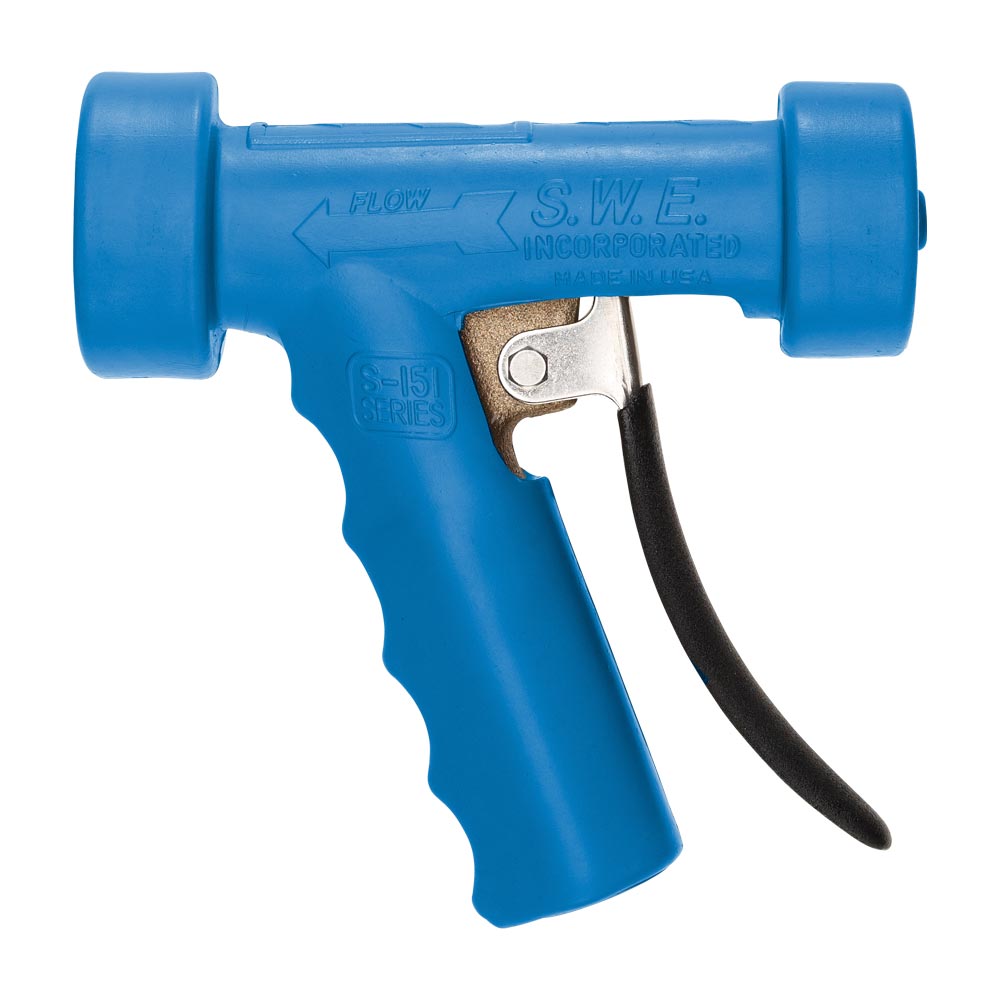

MODEL #
S151BL

NOZZLE S151BL Bronze
and Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Blue Dura Guard Rubber
Cover

We offer hose adaptors in both swivel and non swivel configurations. When you attach our spray nozzle
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.

Adaptors for the S151 Series Nozzle

GHTS

S151 Series Bronze Spray Nozzle with GHTS (Garden Hose) Swivel Adaptor

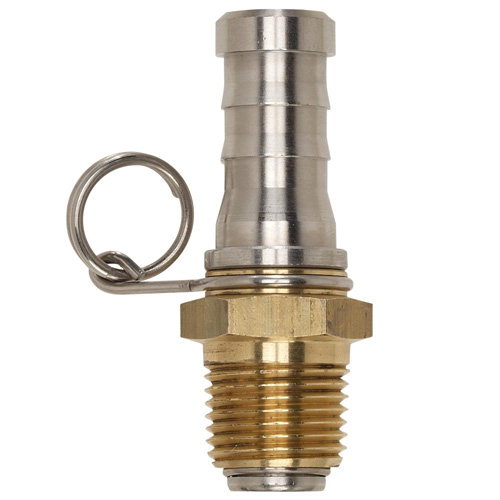

625S

S151 Series Bronze Spray Nozzle with 625S Barb Swivel Fitting

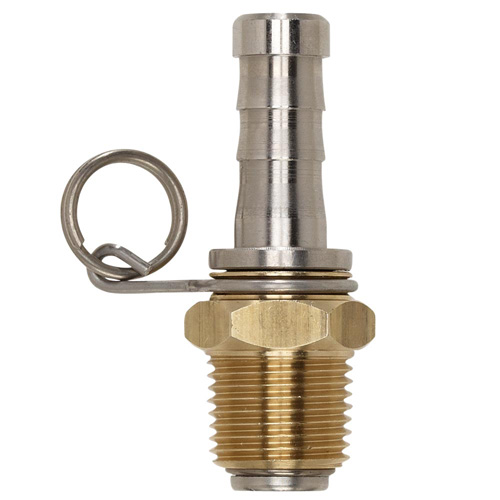

50S

S151 Series Bronze Spray Nozzle with 50S Barb Swivel Fitting

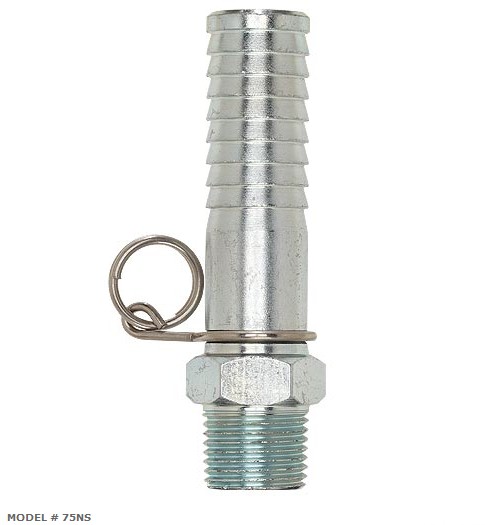

75NS

S151 Series Bronze Spray Nozzle with 75NS Barb Fitting

PART NUMBER

CONFIGURATION

S151BGHTS
Black Cover

Bronze Industrial Grade Spray Nozzle (S151B) with a Hose Adaptor (GHTS) 1/2 NPT X 3/4 Female Garden Hose Thread
(Brass and Stainless Steel) 360 Swivel and a Black Dura Guard Rubber Cover

S151RGHTS
Red Cover

Bronze Industrial Grade Spray Nozzle (S151R) with a Hose Adaptor (GHTS) 1/2 NPT X 3/4 Female Garden Hose Thread
(Brass and Stainless Steel) 360 Swivel and a Red Dura Guard Rubber Cover

S151WGHTS
White Cover

Bronze Industrial Grade Spray Nozzle (S151W) with a Hose Adaptor (GHTS) 1/2 NPT X 3/4 Female Garden Hose Thread
(Brass and Stainless Steel) 360 Swivel and a White Dura Guard Rubber Cover

S151BLGHTS
Blue Cover

Bronze Industrial Grade Spray Nozzle (S151BL) with a Hose Adaptor (GHTS) 1/2 NPT X 3/4 Female Garden Hose Thread
(Brass and Stainless Steel) 360 Swivel and a Blue Dura Guard Rubber Cover

S151GGHTS
Grey Cover

Bronze Industrial Grade Spray Nozzle (S151G) with a Hose Adaptor (GHTS) 1/2 NPT X 3/4 Female Garden Hose Thread
(Brass and Stainless Steel) 360 Swivel and a Grey Dura Guard Rubber Cover

PART NUMBER

CONFIGURATION

S151B50S
Black Cover

Bronze Industrial Grade Spray Nozzle (S151B) with a Hose Adaptor (50S) 1/2 NPT X1/2 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Black Dura Guard Rubber Cover

S151R50S
Red Cover

Bronze Industrial Grade Spray Nozzle (S151R) with a Hose Adaptor (50S) 1/2 NPT X1/2 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Red Dura Guard Rubber Cover

S151W50S
White Cover

Bronze Industrial Grade Spray Nozzle (S151W) with a Hose Adaptor (50S) 1/2 NPT X1/2 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a White Dura GuardRubber Cover

S151BL50S
Blue Cover

Bronze Industrial Grade Spray Nozzle (S151BL) with a Hose Adaptor (50S) 1/2 NPT X1/2 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Blue Dura Guard Rubber Cover

S151G50S
Grey Cover

Bronze Industrial Grade Spray Nozzle (S151G) with a Hose Adaptor (50S) 1/2 NPT X1/2 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Grey Dura Guard Rubber Cover

PART NUMBER

CONFIGURATION

S151B625S
Black Cover

Bronze Industrial Grade Spray Nozzle (S151B) with a Hose Adaptor (625S) 1/2 NPT X 5/8 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Black Dura Guard Rubber Cover

S151R625S
Red Cover

Bronze Industrial Grade Spray Nozzle (S151R) with a Hose Adaptor (625S) 1/2 NPT X 5/8 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Red Dura Guard Rubber Cover

S151W625S
White Cover

Bronze Industrial Grade Spray Nozzle (S151W) with a Hose Adaptor (625S) 1/2 NPT X 5/8 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a White Dura Guard Rubber Cover

S151BL625S
Blue Cover

Bronze Industrial Grade Spray Nozzle (S151BL) with a Hose Adaptor (625S) 1/2 NPT X 5/8 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Blue Dura Guard Rubber Cover

S151G625S
Grey Cover

Bronze Industrial Grade Spray Nozzle (S151G) with a Hose Adaptor (625S) 1/2 NPT X 5/8 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Grey Dura Guard Rubber Cover

PART NUMBER

CONFIGURATION

S151B75NS
Black Cover

Bronze Industrial Grade Spray Nozzle (S151B) with a Hose Adaptor (75NS) 1/2 NPT X 3/4 Hose Barb (Plated Steel) NON
SWIVEL and a Black Dura Guard Rubber Cover

S151R75NS
Red Cover

Bronze Industrial Grade Spray Nozzle (S151R) with a Hose Adaptor (75NS) 1/2 NPT X 3/4 Hose Barb (Plated Steel) NON
SWIVEL and a Red Dura Guard Rubber Cover

S151W75NS
White Cover

Bronze Industrial Grade Spray Nozzle (S151W) with a Hose Adaptor (75NS) 1/2 NPT X 3/4 Hose Barb (Plated Steel) NON
SWIVEL and a White Dura Guard Rubber Cover

S151BL75NS
Blue Cover

Bronze Industrial Grade Spray Nozzle (S151BL) with a Hose Adaptor (75NS) 1/2 NPT X 3/4 Hose Barb (Plated Steel) NON
SWIVEL and a Blue Dura Guard Rubber Cover

S151G75NS
Grey Cover

Bronze Industrial Grade Spray Nozzle (S151G) with a Hose Adaptor (75NS) 1/2 NPT X 3/4 Hose Barb (Plated Steel) NON
SWIVEL and a Grey Dura Guard Rubber Cover

Click Here for the
Repair Manual to the
S151 Full Size Nozzle

Streamline Washdown Equipment, Inc.

Nitrile Cover for oily
environments!

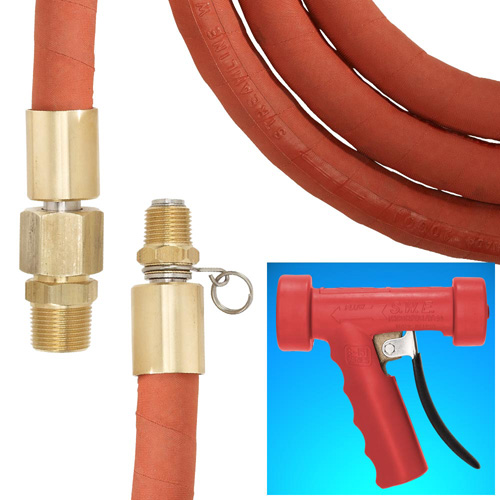

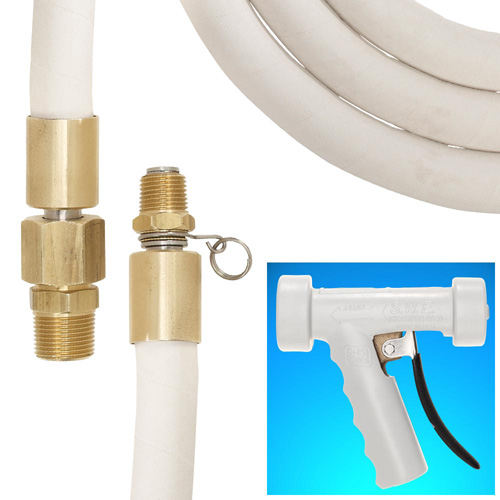

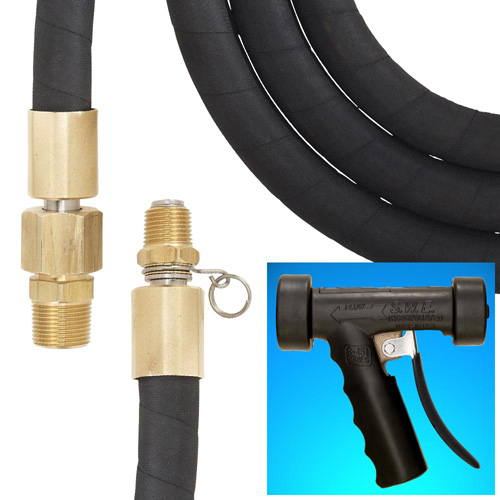

Click Here for Nozzles with Hose

STANDARD SIZE NOZZLES 1/2" inlet

PART NUMBER

CONFIGURATION

S151B75S
Black Cover

Bronze Industrial Grade Spray Nozzle (S151B) with a Hose Adaptor (75S) 1/2 NPT X 3/4 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Black Dura Guard Rubber Cover

S151R75S
Red Cover

Bronze Industrial Grade Spray Nozzle (S151R) with a Hose Adaptor (75S) 1/2 NPT X 3/4 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Red Dura Guard Rubber Cover

S151W75S
White Cover

Bronze Industrial Grade Spray Nozzle (S151W) with a Hose Adaptor (75S) 1/2 NPT X 3/4 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a White Dura Guard Rubber Cover

S151BL75S
Blue Cover

Bronze Industrial Grade Spray Nozzle (S151BL) with a Hose Adaptor (75S) 1/2 NPT X 3/4 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Blue Dura Guard Rubber Cover

S151G75S
Grey Cover

Bronze Industrial Grade Spray Nozzle (S151G) with a Hose Adaptor (75S) 1/2 NPT X 3/4 Hose Barb (Brass and Stainless
Steel) 360 Swivel and a Grey Dura Guard Rubber Cover

75S

S151 Series Bronze Spray Nozzle with 75S Barb Swivel Fitting

MAXIMUM TEMPERATURE: 200°F
Max. Handling Temperate: 140°F

MAXIMUM PRESSURE: 150 PSI
FLOW RATE: 12.5 GPM @ 150 PSI
WEIGHT: 3.25 lbs.

Flow Rate Data for the Model S151 Nozzles

S151 Series Nozzle Flow Characteristics

Need adapters?

CALL (937) 558-2497
