Flex-Master 250 Washdown Hose
 |
 |
 |
 |
 |
| 50 ft. Flex Master hose assembly "A" with S151 series bronze spray nozzle |
| 250 PSIG 4:1 SAFETY FACTOR 200°F CONTINUOUS Our Hose Assemblies are engineered to offer our customers a rugged, durable, high performance product ideally suited for industrial hot water washdown applications. It is constructed with a single braided textile reinforced chlorobutyl tube with a wrapped, textured neoprene cover for black and red hose (hypalon cover for white hose). We offer standard lengths of 25ft and 50ft however, we can provide custom lengths. Our hose assemblies are furnished with heavy duty brass and stainless steel fittings with stainless steel spring guards at both ends that are hydraulically crimped to the hose. All hose assemblies are 5/8" ID, 1-1/64" OD, 250 PSI, 200°F, .25 lbs. per foot. It offers the best strength to weight ratio, is resistant to wide range of service conditions and it's superior handling lessens operator fatigue. |
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247
Streamline Washdown Equipment, Inc.
CLICK ANY IMAGE TO VIEW LARGER PHOTOS!
MODEL #
50FTAB
50FTAB

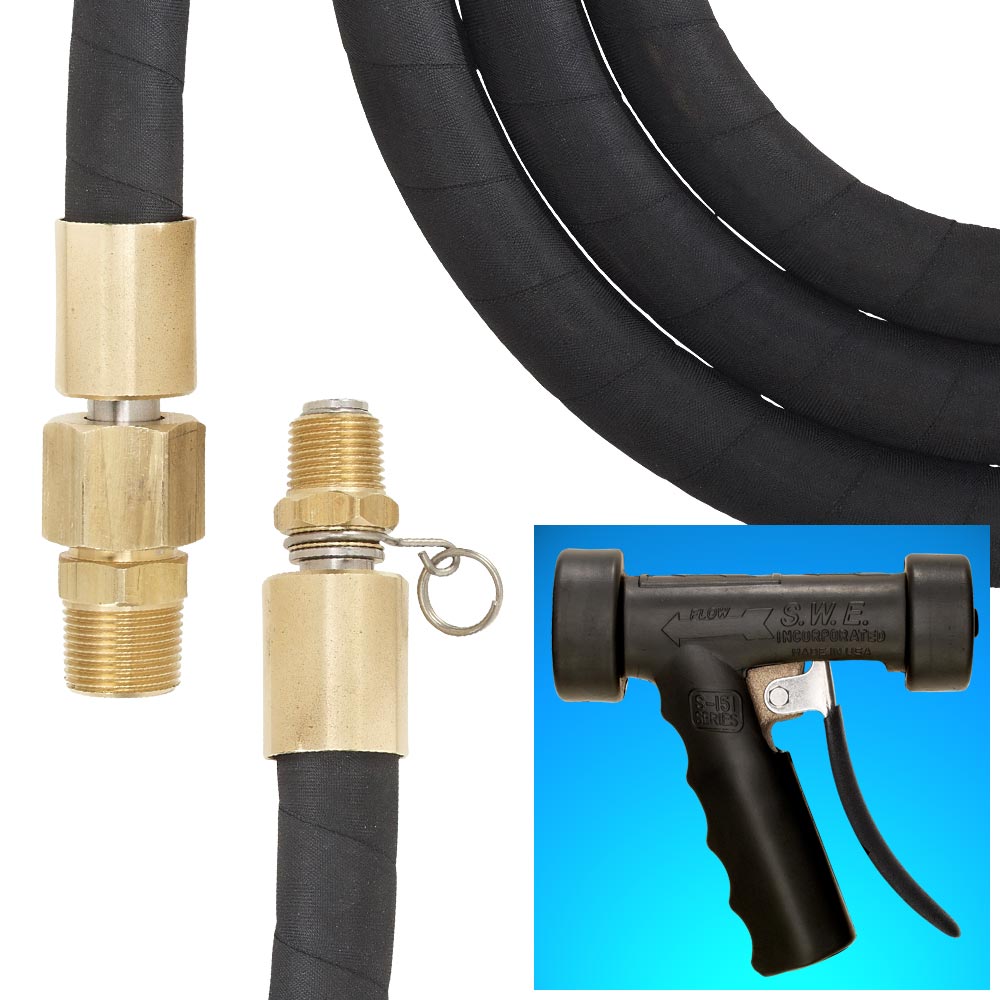

Hose Assembly A (50FTAB)
Includes a S151B Black Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Black Neoprene Cover. One
end is a 3-Piece 3/4 NPT Male
Brass Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
Includes a S151B Black Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Black Neoprene Cover. One
end is a 3-Piece 3/4 NPT Male
Brass Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
MODEL #
50FTAR
50FTAR

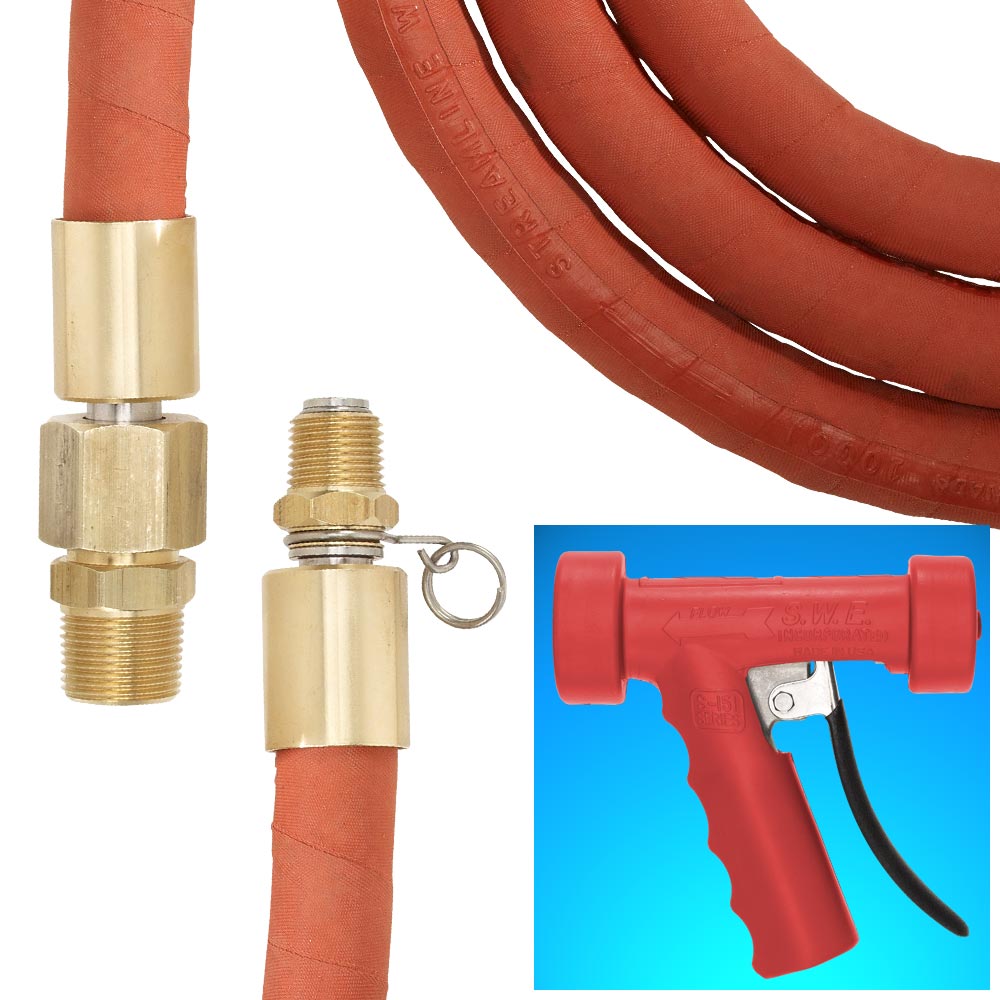

Hose Assembly A (50FTAR)
Includes a S151R Red Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Red Neoprene Cover. One end
is a 3-Piece 3/4 NPT Male Brass
Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
Includes a S151R Red Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Red Neoprene Cover. One end
is a 3-Piece 3/4 NPT Male Brass
Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
MODEL #
50FTAW
50FTAW

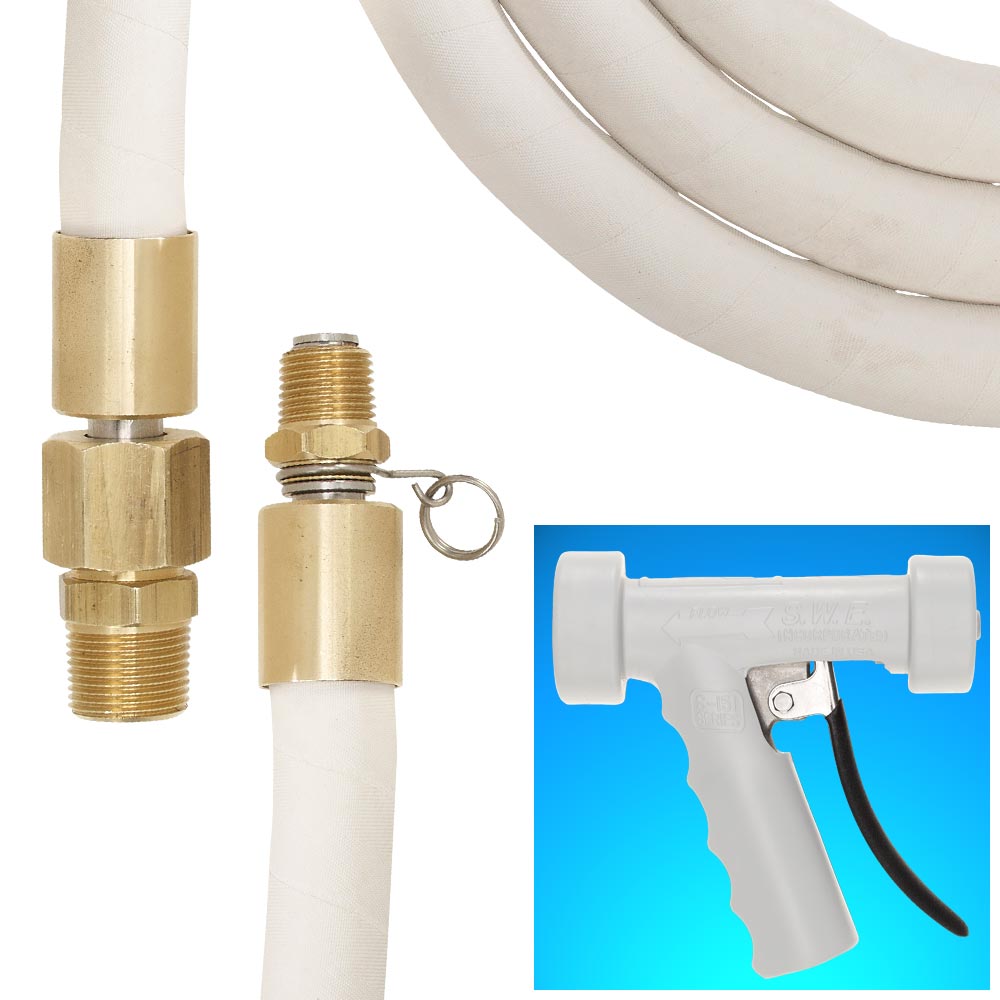

Hose Assembly A (50FTAW)
Includes a S151W White Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with White Hypalon Cover. One end
is a 3-Piece 3/4 NPT Male Brass
Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
Includes a S151W White Bronze
Series Spray Nozzle, 50 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with White Hypalon Cover. One end
is a 3-Piece 3/4 NPT Male Brass
Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Brass Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Brass Ferrule
