Flex-Master 250 Washdown Hose
 |
 |
 |
 |
 |
| 25ft Flex Master hose assembly "F" without nozzle, all stainless steel fittings |
| 250 PSIG 4:1 SAFETY FACTOR 200°F CONTINUOUS Our Hose Assemblies are engineered to offer our customers a rugged, durable, high performance product ideally suited for industrial hot water washdown applications. It is constructed with a single braided textile reinforced chlorobutyl tube with a wrapped, textured neoprene cover for black and red hose (hypalon cover for white hose). We offer standard lengths of 25ft and 50ft however, we can provide custom lengths. Our hose assemblies are furnished with heavy duty brass and stainless steel fittings with stainless steel spring guards at both ends that are hydraulically crimped to the hose. All hose assemblies are 5/8" ID, 1-1/64" OD, 250 PSI, 200°F, .25 lbs. per foot. It offers the best strength to weight ratio, is resistant to wide range of service conditions and it's superior handling lessens operator fatigue. |
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247
Streamline Washdown Equipment, Inc.
CLICK ANY IMAGE TO VIEW LARGER PHOTOS
MODEL #
25FTFBSS
25FTFBSS

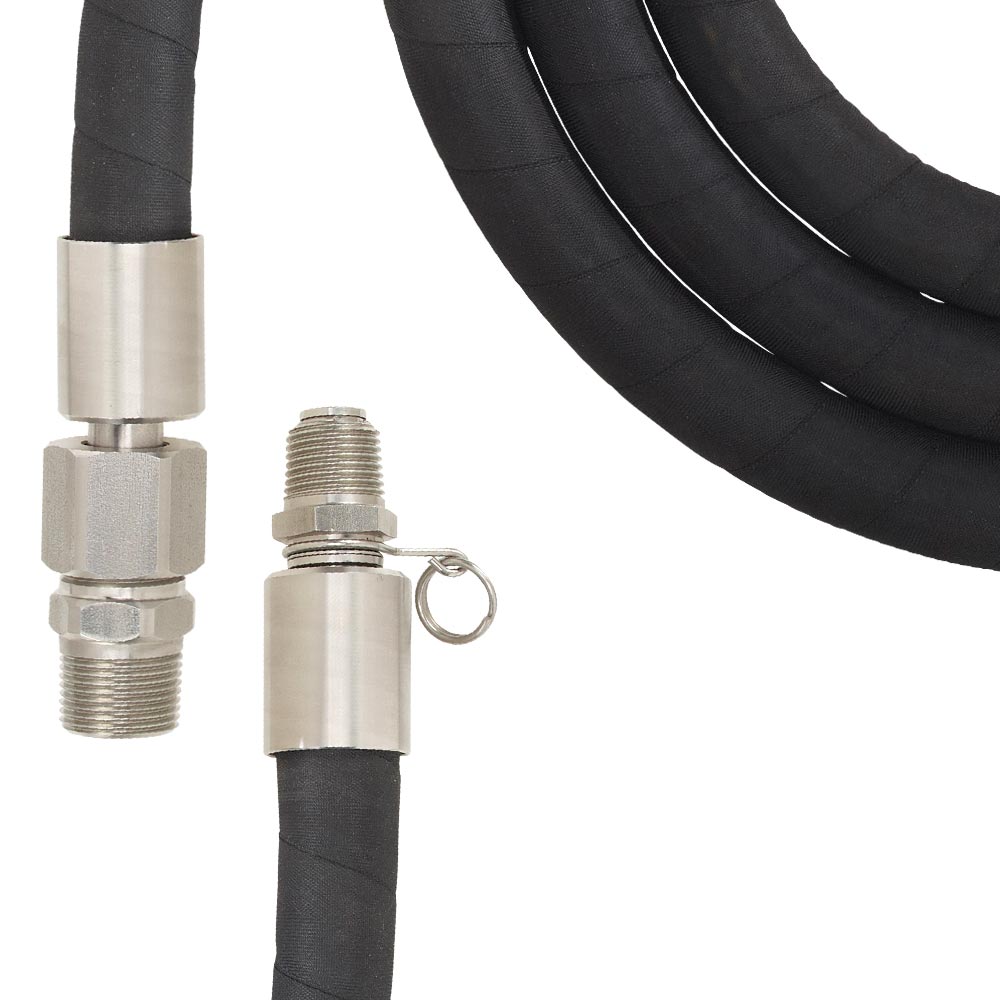

Hose Assembly F (25FTFBSS) LESS
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Black Neoprene Cover. One
end is a 3-Piece 3/4 NPT Male
Stainless Steel Adaptor and
Stainless Steel Internal Spring
Guard and a 1/2 NPT 360 Swivel
Stainless Steel Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Stainless Steel Ferrule.
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Black Neoprene Cover. One
end is a 3-Piece 3/4 NPT Male
Stainless Steel Adaptor and
Stainless Steel Internal Spring
Guard and a 1/2 NPT 360 Swivel
Stainless Steel Adaptor and
Stainless Steel Internal Spring
Guard on the other end. Both ends
are Hydraulically Crimped to the
hose with a Stainless Steel Ferrule.
MODEL #
25FTFRSS
25FTFRSS

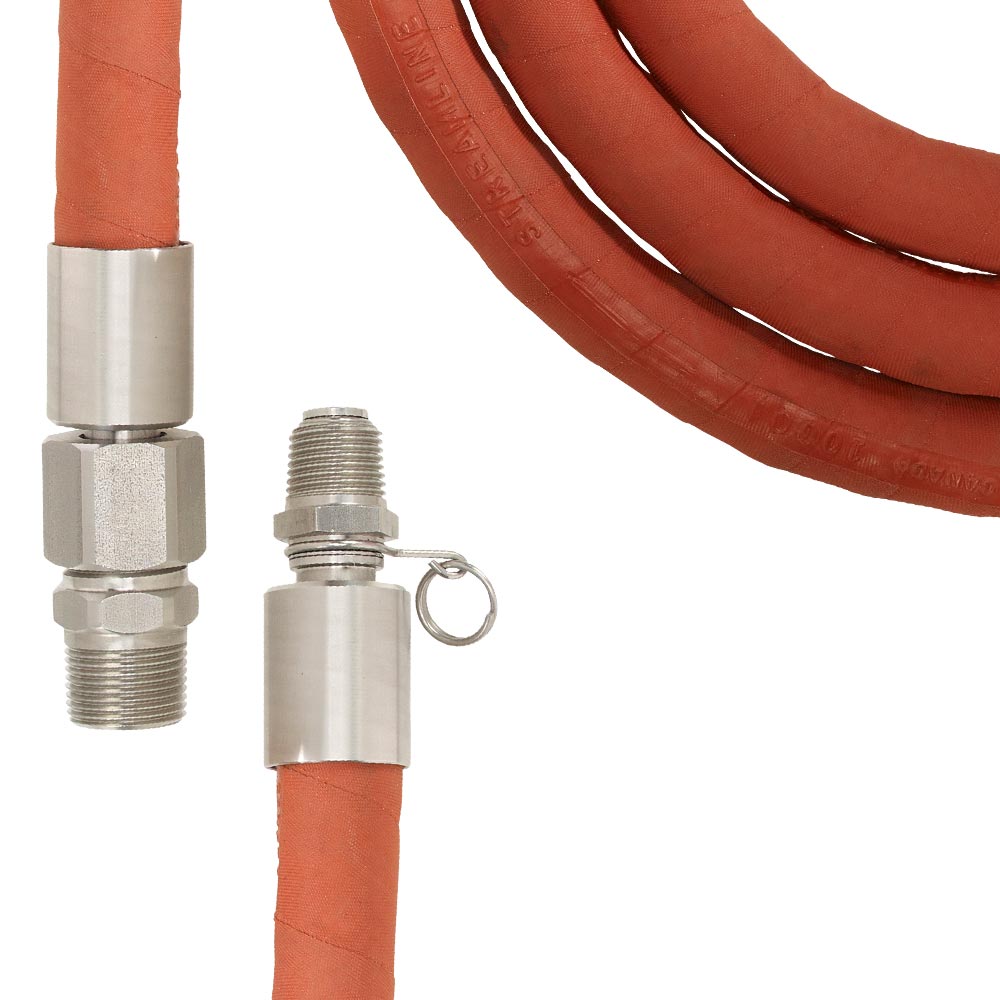

Hose Assembly F (25FTFRSS) LESS
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Red Neoprene Cover. One end
is a 3-Piece 3/4 NPT Male Stainless
Steel Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Stainless Steel
Adaptor and Stainless Steel
Internal Spring Guard on the other
end. Both ends are Hydraulically
Crimped to the hose with a
Stainless Steel Ferrule.
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with Red Neoprene Cover. One end
is a 3-Piece 3/4 NPT Male Stainless
Steel Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Stainless Steel
Adaptor and Stainless Steel
Internal Spring Guard on the other
end. Both ends are Hydraulically
Crimped to the hose with a
Stainless Steel Ferrule.
MODEL #
25FTFWSS
25FTFWSS

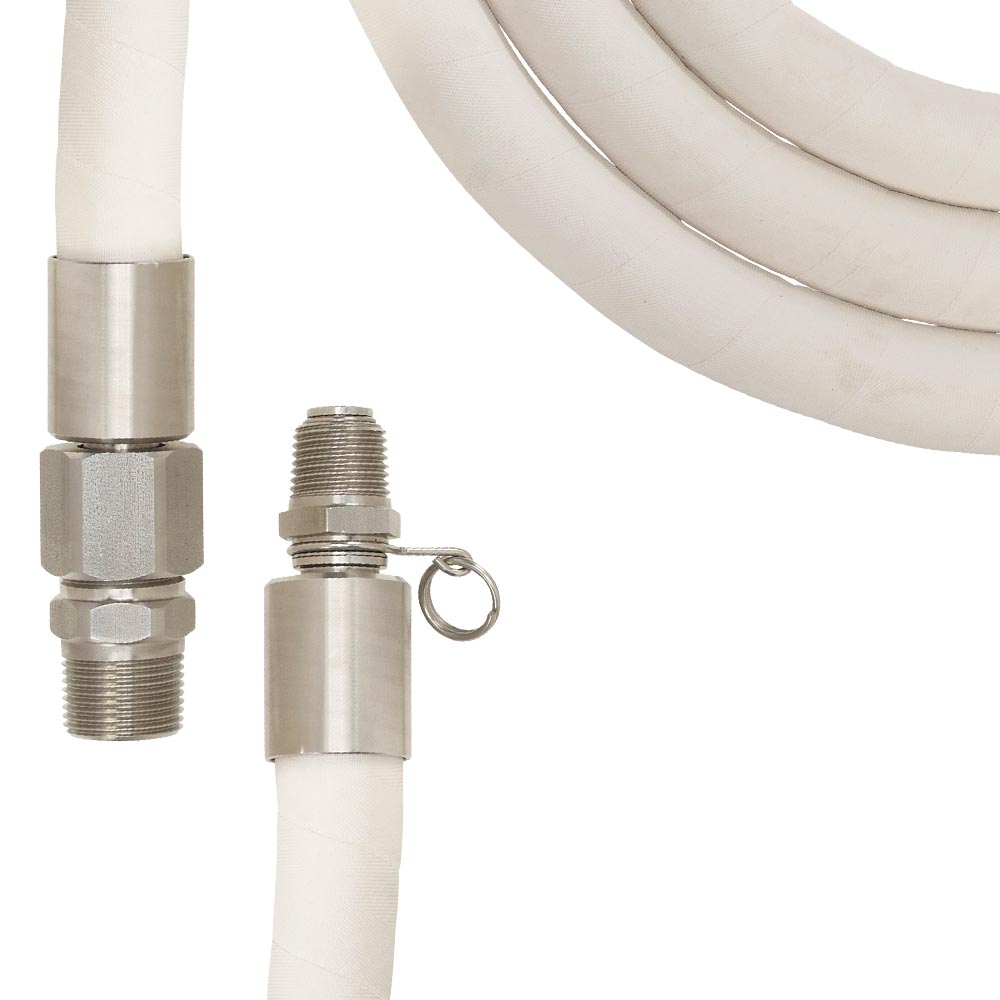

Hose Assembly F (25FTFWSS) LESS
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with White Hyaplon Cover. One end
is a 3-Piece 3/4 NPT Male Stainless
Steel Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Stainless Steel
Adaptor and Stainless Steel
Internal Spring Guard on the other
end. Both ends are Hydraulically
Crimped to the hose with a
Stainless Steel Ferrule.
NOZZLE Includes 25 Feet of 5/8
I.D. Flex Master Hose, Comprised
of a Single Braided Textile
Reinforced Black Chlorobutyl Tube
with White Hyaplon Cover. One end
is a 3-Piece 3/4 NPT Male Stainless
Steel Adaptor and Stainless Steel
Internal Spring Guard and a 1/2
NPT 360 Swivel Stainless Steel
Adaptor and Stainless Steel
Internal Spring Guard on the other
end. Both ends are Hydraulically
Crimped to the hose with a
Stainless Steel Ferrule.
