Ohiocraft (937) 558-2497

Replacement Parts

Streamline Washdown Equipment, Inc.

Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247

MODEL #
12PK

MODEL #
7S

MODEL #
5S

MODEL #
2L

Trigger Lever (All Stainless Steel)
Thermal Coated for the S151
series Spay Nozzle

O ring for the barrel assembly,
Buna rubber. Sold each.

Thrust Collar Stainless Steel for
the S151 Series Spray Nozzle

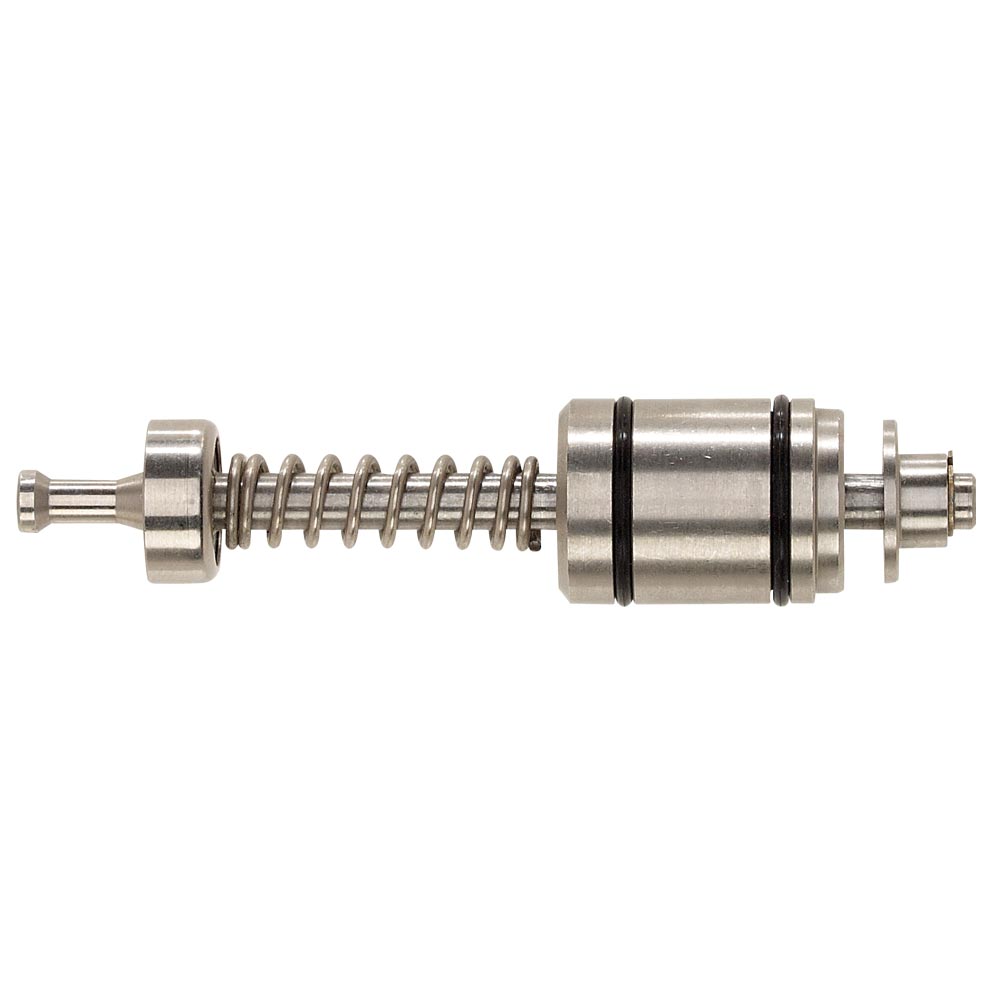

Barrel Assembly Stainless Steel
for the S151 Series Stainless
Spray Nozzle ( Contains all
Internal Working Parts)

Lever Lock Ring for the S151
series Spray Nozzle (All Stainless
Steel)

MODEL #
8LR

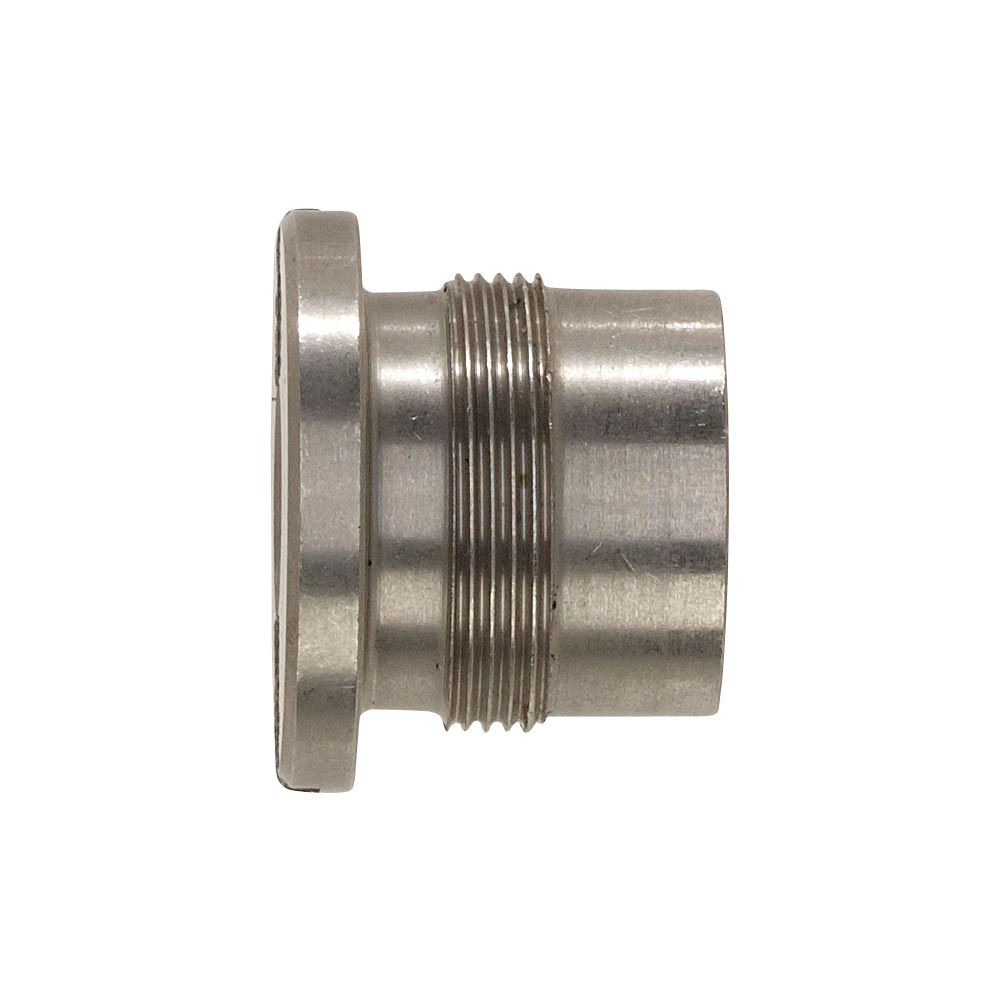

End Adaptor ( Stainless Steel)
for the For S151 Series Spray
Nozzle

MODEL #
6A

MODEL #
TIP

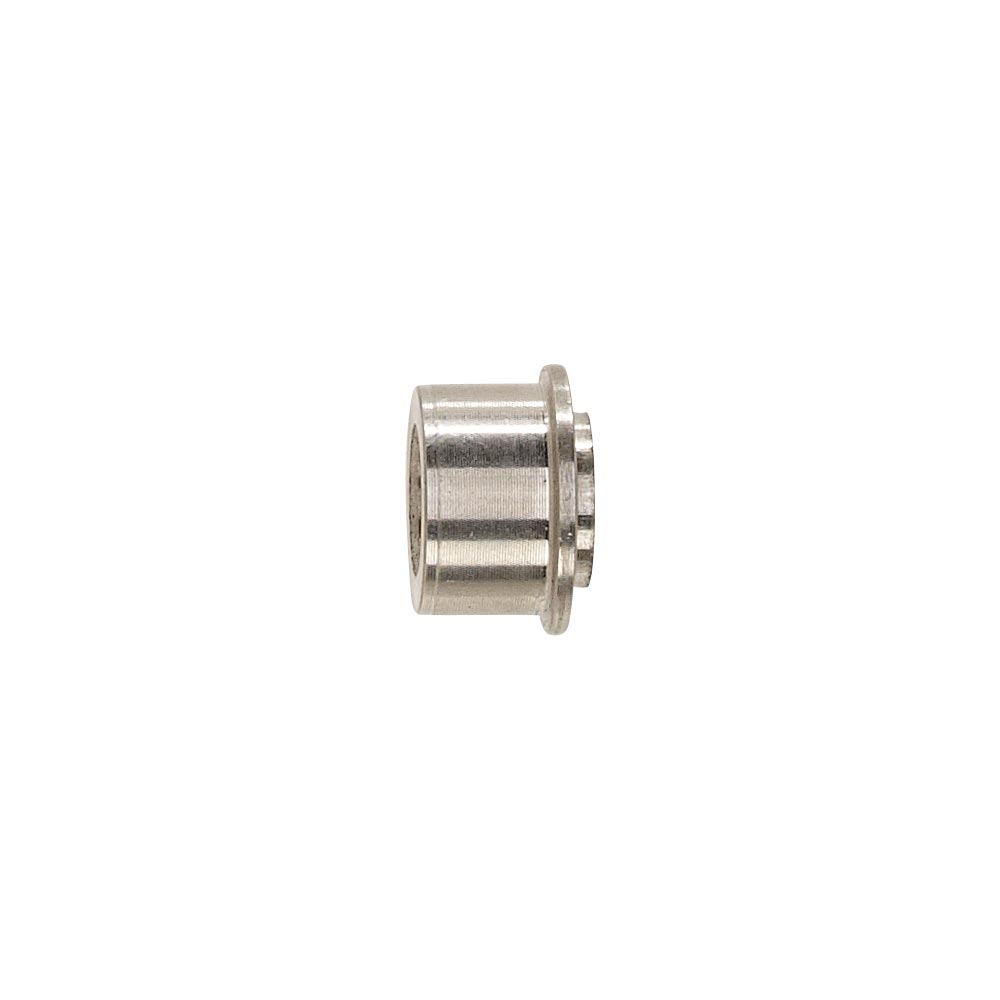

Stainless Steel Tip (All
Stainless Steel) for the
S151 High Temperature
Spray Nozzle

MODEL #
6ATR

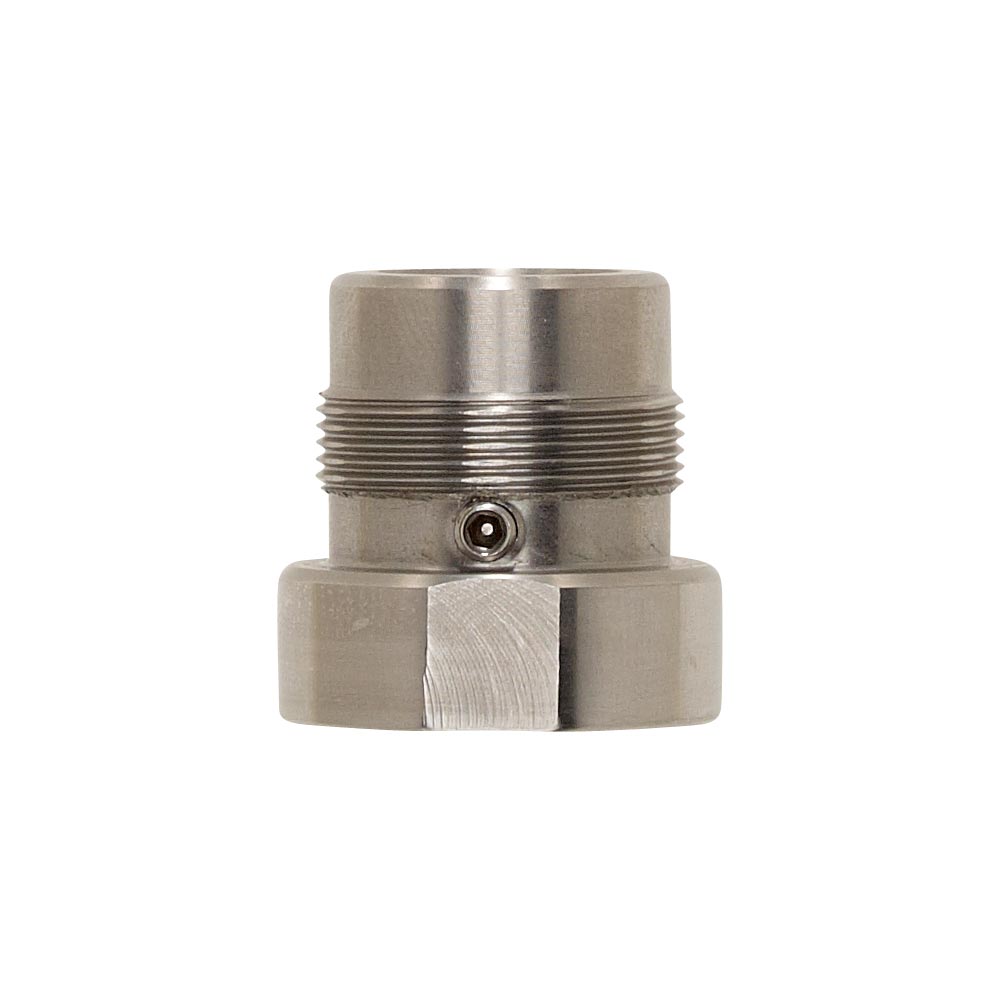

Modified end adaptor (All Stainless
Steel) for the S151 Series
Temperature indicating Spray Nozzle

CLICK ANY IMAGE TO VIEW LARGER PHOTOS

Barrel Assembly Brass for the
S151 Series Bronze Spray
Nozzle (Contains all Internal
Working Parts)

MODEL #
7B

Nylon Spacer for the Bolt and
Bushing Handle Mount For
S151 High Temperature Spray
Nozzle

MODEL #
9NS

MODEL #
38NS

Non Swivel Adaptor for the
S151 series High Temperature
Nozzle (All Stainless Steel)

MODEL #
PVC

PVC Insulating Handle for the
S151 Series High Temperature
Nozzle

MODEL #
1000250

Temperature Gauge for the
S151 Series Temperature
Indicating Spray Nozzle

MODEL#
S151KITR

Complete repair kit for the
S151 Series Spray Nozzle*.
Includes one each of the
following parts:

Red Rubber Cover (4R)
End Adaptor (6A)
Thrust Collar (5S)
Barrel Assembly (7B or
7S)**
Bolt and Bushing (3BB)
Lever (2L)
* Specify Nozzle (Bronze,
Stainless Steel, or
Aluminum)
** Specify Barrel (7B or 7S)

MODEL #
S151KITB

Complete repair kit for the
S151 Series Spray Nozzle*.
Includes one each of the
following parts:

Black Rubber Cover (4B)
End Adaptor (6A)
Thrust Collar (5S)
Barrel Assembly (7B or
7S)**
Bolt and Bushing (3BB)
Lever (2L)
* Specify Nozzle (Bronze,
Stainless Steel, or
Aluminum)
** Specify Barrel (7B or 7S)

MODEL #
S151KITBL

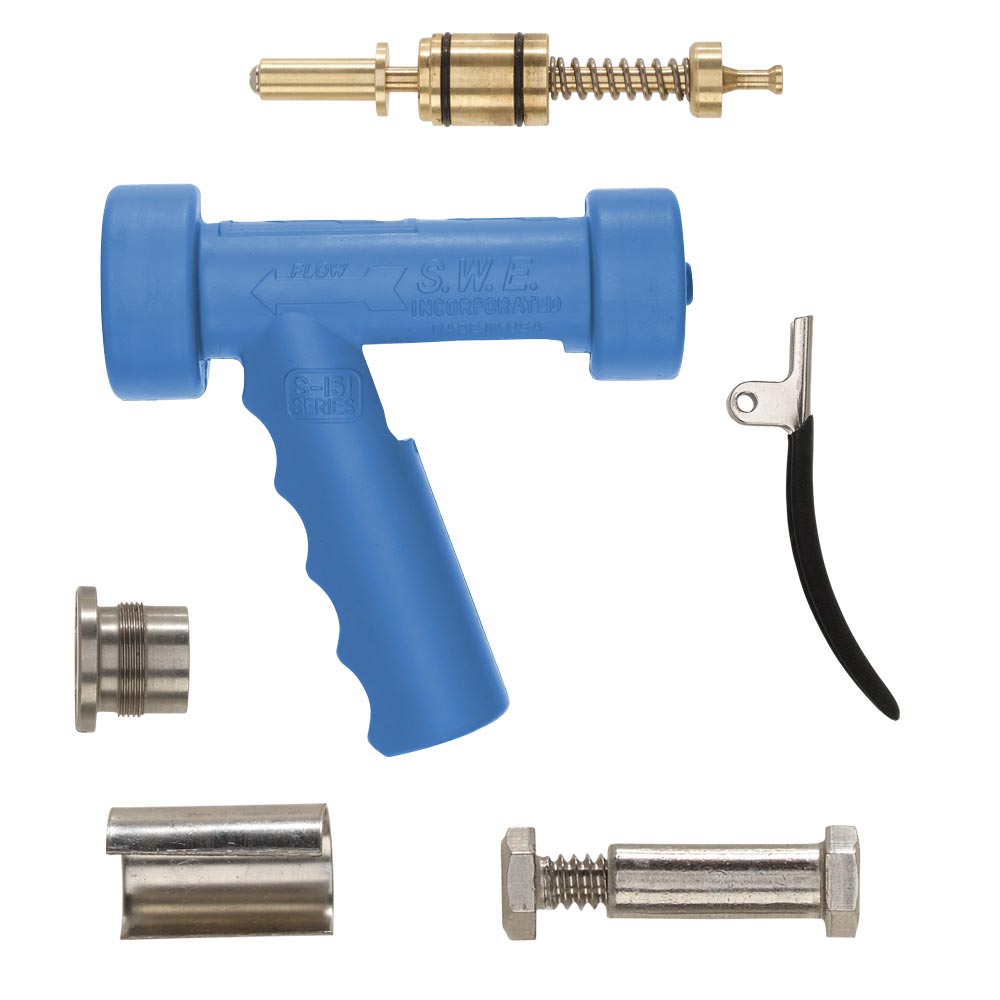

Complete repair kit for the
S151 Series Spray Nozzle*.
Includes one each of the
following parts:

Blue Rubber Cover (4BL)
End Adaptor (6A)
Thrust Collar (5S)
Barrel Assembly (7B or
7S)**
Bolt and Bushing (3BB)
Lever (2L)
* Specify Nozzle (Bronze,
Stainless Steel, or
Aluminum)
** Specify Barrel (7B or 7S)

MODEL #
S151KITW

Complete repair kit for the
S151 Series Spray Nozzle*.
Includes one each of the
following parts:

White Rubber Cover (4W)
End Adaptor (6A)
Thrust Collar (5S)
Barrel Assembly (7B or
7S)**
Bolt and Bushing (3BB)
Lever (2L)
* Specify Nozzle (Bronze,
Stainless Steel, or
Aluminum)
** Specify Barrel (7B or 7S)

Complete Replacement Kits for the S151 Series Spray Nozzle

Replacement Parts for the S151 Series Spray Nozzle

Return to Replacement Parts Page

MODEL #
S151KITG

Complete repair kit for the
S151 Series Spray Nozzle*.
Includes one each of the
following parts:

Grey Rubber Cover (4G)
End Adaptor (6A)
Thrust Collar (5S)
Barrel Assembly (7B or
7S)**
Bolt and Bushing (3BB)
Lever (2L)
* Specify Nozzle (Bronze,
Stainless Steel, or
Aluminum)
** Specify Barrel (7B or 7S)
