MAXIMUM TEMPERATURE: 200°F MAXIMUM PRESSURE: 150 PSI Flow Rate: 12.5 GPM @ 150 PSI Weight: 3.25 lbs.
Our Model (S151SS) Stainless Steel Series Spray Nozzles are designed and constructed for use on corrosive applications
and DI water where bronze and aluminum are not suitable. The body and barrel assembly which contains all internal
working parts are 300 series stainless steel. It's heavy-duty stainless steel construction is designed to withstand the
abuse and punishment common to the industrial environment. It features a variable spray pattern that adjusts from a soft
spray to a solid stream simply by depressing the lever. You are assured of drip-tight shutoff upon release of the lever. The
rear mounted lever helps ease operation during extended periods of use and reduces finger cramping. Stainless Steel
Seats come standard on all of our Nozzles.
Our Model (S151SS) Stainless Steel Series Spray Nozzles are designed and constructed for use on corrosive applications
and DI water where bronze and aluminum are not suitable. The body and barrel assembly which contains all internal
working parts are 300 series stainless steel. It's heavy-duty stainless steel construction is designed to withstand the
abuse and punishment common to the industrial environment. It features a variable spray pattern that adjusts from a soft
spray to a solid stream simply by depressing the lever. You are assured of drip-tight shutoff upon release of the lever. The
rear mounted lever helps ease operation during extended periods of use and reduces finger cramping. Stainless Steel
Seats come standard on all of our Nozzles.
Ohiocraft Industrial Products P.O. Box 81, West Milton, Ohio 45383 Phone: (937) 558-2497 Fax: (937) 698-1247
CLICK ANY IMAGE TO VIEW LARGER PHOTOS!
MODEL #

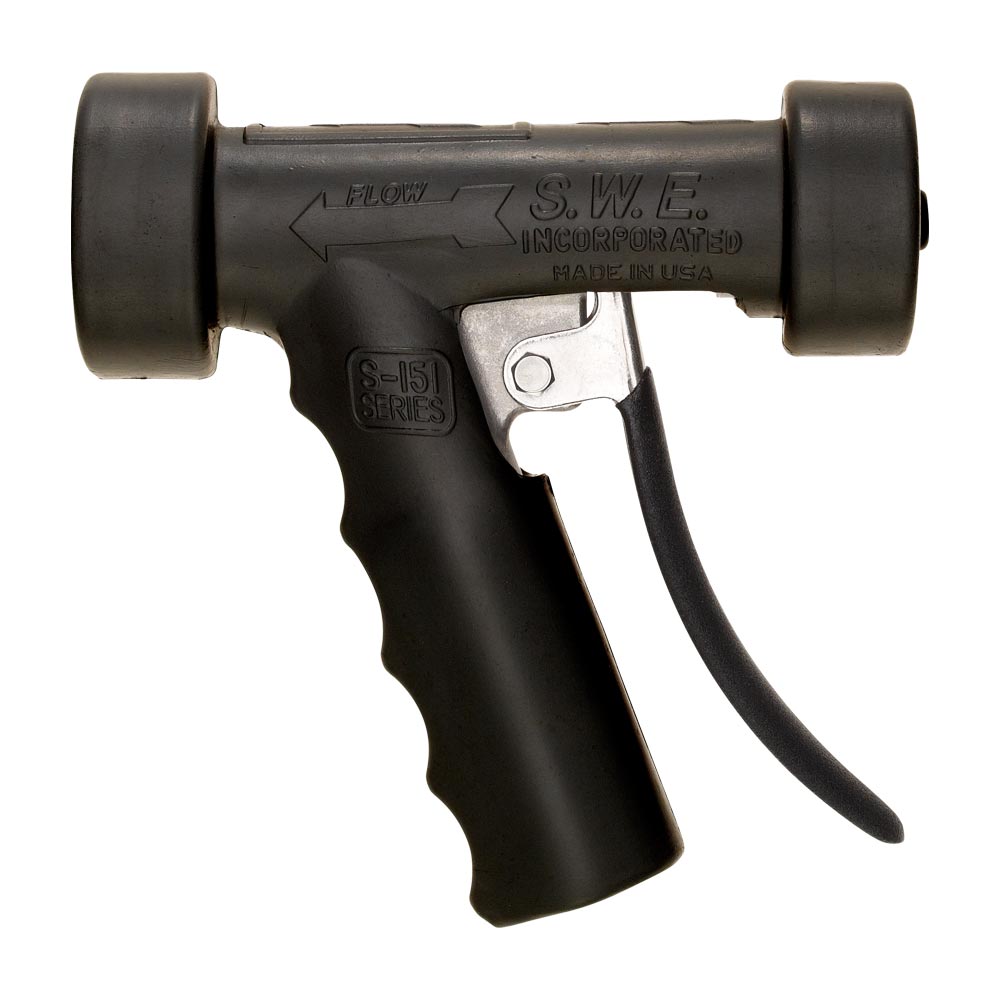

S151SSB
S151SSB
NOZZLE S151SSB All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Black Dura Guard Rubber
Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Black Dura Guard Rubber
Cover
MODEL #

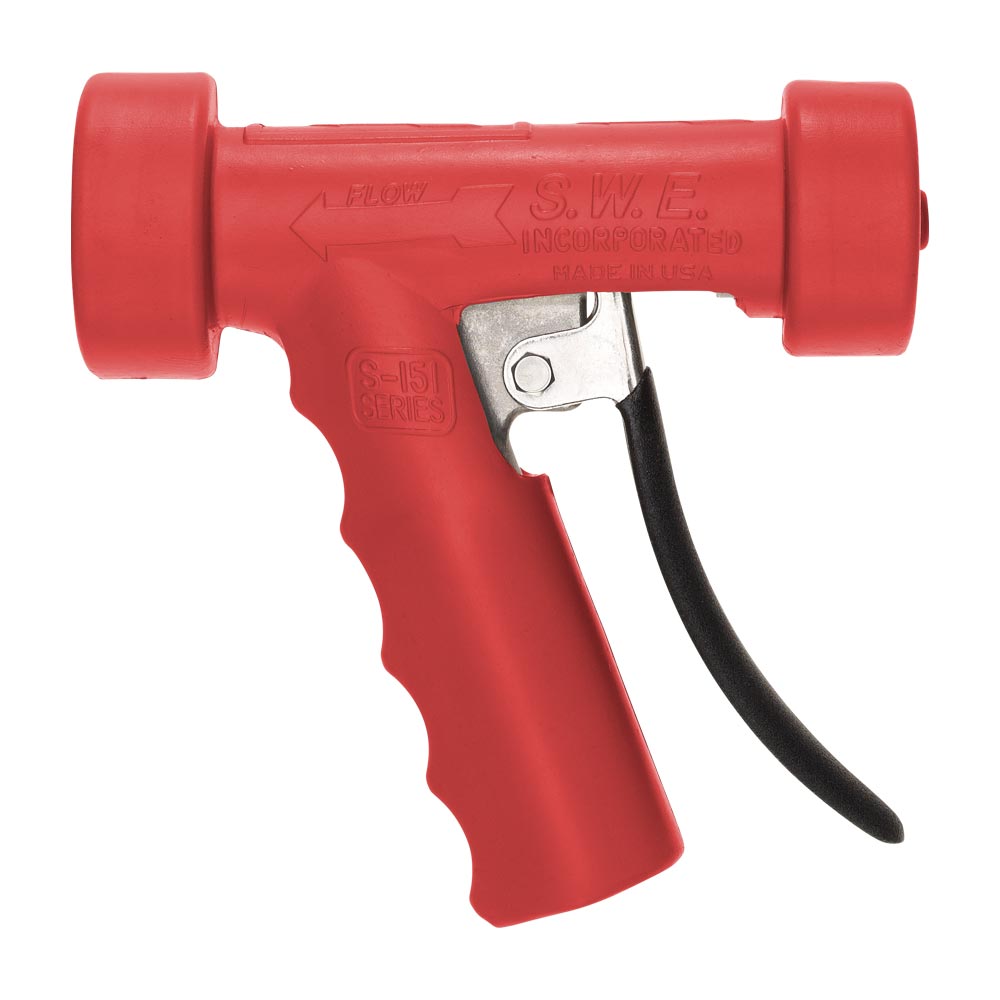

S151SSR
S151SSR
NOZZLE S151SSBL All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Red Dura Guard Rubber
Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Red Dura Guard Rubber
Cover
MODEL #
S151SSW
S151SSW
NOZZLE S151SSG All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
White Dura Guard
Rubber Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
White Dura Guard
Rubber Cover
Stainless Steel Industrial Grade Spray Nozzle and adaptors
NOZZLE S151SSW All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Grey Dura Guard Rubber
Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Grey Dura Guard Rubber
Cover
MODEL #
S151SSG
S151SSG
MODEL #
S151SSBL
S151SSBL
NOZZLE S151SSR All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Blue Dura Guard Rubber
Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
Blue Dura Guard Rubber
Cover
NOZZLE S151SSBN All 300
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
heavy duty Black Nitrile
Rubber Cover
Series Stainless Steel
Construction, Industrial
Grade Spray Nozzle with
rear mounted lever and
heavy duty Black Nitrile
Rubber Cover
MODEL #
S151SSBN
S151SSBN
We offer hose adaptors in both swivel and non swivel configurations. When you attach our spray nozzle
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.
to a hose assembly, using a swivel adaptor, it allows the nozzle to rotate 360 degrees independently of
the hose thereby promoting easier use of the hose and nozzle assembly and helps eliminate twisting
and kinking. Our swivel hose adaptors are available in brass and stainless steel construction, and in all
stainless steel. The swivel adaptors are available for 1/2", 5/8", and 3/4" I.D. hose, and 3/4" FGHT. The
non swivel adaptors are constructed in plated steel and are available for 3/4" and 5/8" I.D. hose. We
also offer a non swivel adaptor constructed in all stainless steel for 3/4" I.D. hose. If you do not see an
adaptor suited for your particular application, please call, fax or email and in most cases we can supply
your needs.
Adaptors for the S151SS Series Nozzle
|
|
|
|
|
|
|
|
|
|
| This model is recommended for use on D. I. Water and other corrosive applications where bronze and aluminum are not suitable. |
| Phone (937) 558-2497 Fax (937) 698-1247 |
Streamline Washdown Equipment, Inc.
Nitrile Cover for
oily
environments!
oily
environments!
Need adapters?
| Click Here for the Repair Manual to the S151 Full Size Nozzle |
STANDARD SIZE NOZZLES 1/2" inlet
