Washdown Equipment
| Hot and Cold Water Mixing Stations |

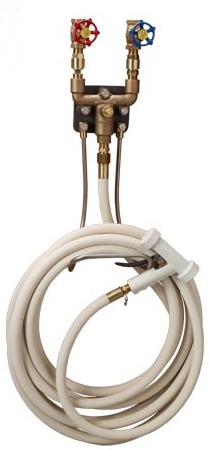

Mixmaster 3000
The MIXMASTER 3000 series mixing stations
blend hot and cold water safely and efficiently
for all of your hot water washdown needs.
Standard equipment includes control valves, in-line check valves,
hose rack, mounting plate and mounting hardware.
blend hot and cold water safely and efficiently
for all of your hot water washdown needs.
- Unit is designed to furnish hot water to 200 degrees F.
- Available in bronze or stainless steel construction.
Standard equipment includes control valves, in-line check valves,
hose rack, mounting plate and mounting hardware.
- Optional heavy duty stainless steel temperature gauge is also
available.
| Steam and Cold Water Mixing Stations |

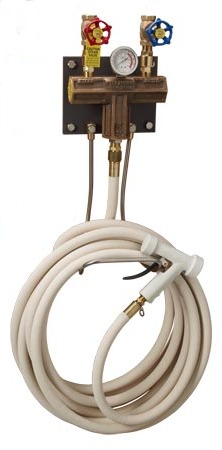

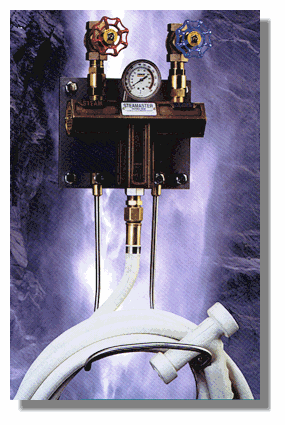

Steamaster 2000
| SPECIAL FEATURES STEAM DIFFUSER |
"FAIL-SAFE" Steam & Cold Water Mixer
- The Steamaster 2000 Series instant hot water
makers were designed to safely blend steam
and cold water together to provide hot water on
demand. - Wherever there is a need for hot water to
washdown floors, process equipment, vessels,
vats or vehicles, the Steamaster can supply the
hot water you need at a temperature you select,
and deliver it safely. Should the cold water fail,
the steam is instantly shut-off. - All units are furnished with control valves, a dial
thermometer, in-line check valves, hose rack,
mounting plate, and mounting hardware.
The steam enters
the blending
chamber via a
unique, specially
designed steam
diffuser.
Instead of a single
jet found in
competitive
models, our unique
steam diffuser
disperses the steam
into the water in
the blending
chamber through
not one, but 40
different steam
injectors.
This results in a
complete and
thorough blending
of the steam and
water, for a more
efficient and
substantially
quieter operation.
the blending
chamber via a
unique, specially
designed steam
diffuser.
Instead of a single
jet found in
competitive
models, our unique
steam diffuser
disperses the steam
into the water in
the blending
chamber through
not one, but 40
different steam
injectors.
This results in a
complete and
thorough blending
of the steam and
water, for a more
efficient and
substantially
quieter operation.
STEAMASTER 2000 available in bronze and all stainless steel

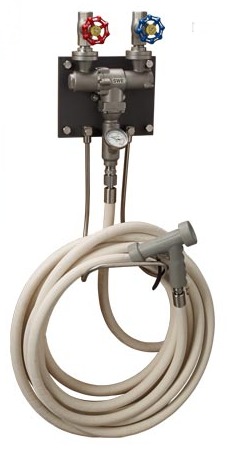

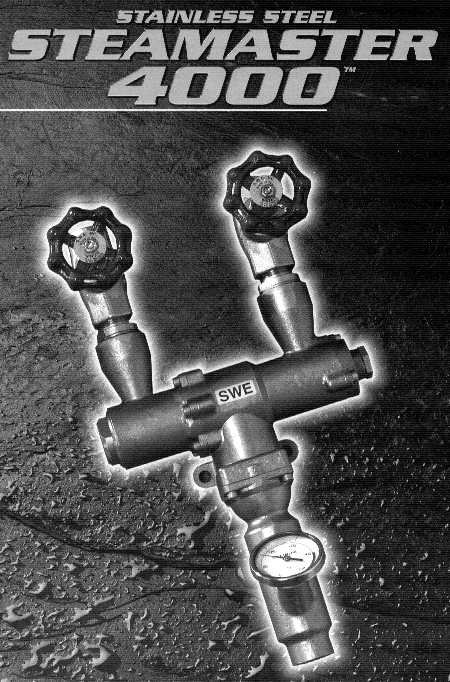

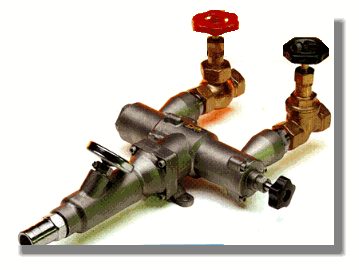

Steamaster 4000
Stainless Steel Steam / Water Mixer
The Steamaster 4000 Series instant hot water
mixers were designed to safely blend steam and
cold water together to provide hot water on
demand.
Whether you need to washdown floors, process
equipment, vessels, vats or vehicles, the
Steamaster 4000 can safely supply the hot water
you need at the temperature you select.
Should the cold water fail, the Steamaster will
immediately shut off the steam supply. All units
are furnished with control valves, a dial
thermometer, in-line check valves, a hose rack,
mounting plate and mounting hardware.
The Steamaster 4000 Series instant hot water
mixers were designed to safely blend steam and
cold water together to provide hot water on
demand.
Whether you need to washdown floors, process
equipment, vessels, vats or vehicles, the
Steamaster 4000 can safely supply the hot water
you need at the temperature you select.
Should the cold water fail, the Steamaster will
immediately shut off the steam supply. All units
are furnished with control valves, a dial
thermometer, in-line check valves, a hose rack,
mounting plate and mounting hardware.
| FAIL-SAFE DESIGN |
On Cold Water Failure, the
steam is instantly shut- off.
This is accomplished with
a spring loaded resilient
seated valve that closes
when there is no water
pressure. The resilient seat
gives you zero leakage,
reduces excessive seat
wear, and helps prevent
sticking due to the build up
of hard water deposits on
the seating surfaces.
steam is instantly shut- off.
This is accomplished with
a spring loaded resilient
seated valve that closes
when there is no water
pressure. The resilient seat
gives you zero leakage,
reduces excessive seat
wear, and helps prevent
sticking due to the build up
of hard water deposits on
the seating surfaces.
| Washdown Spray Nozzles |

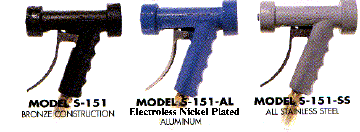

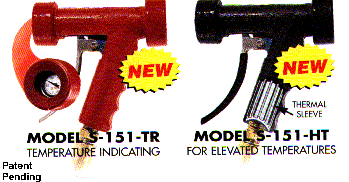

S-151 Full Size Nozzle
- Heavy-Duty Bronze and stainless steel construction insure
an extended life under long-term severe service conditions. - Aluminum model light weight with bronze and stainless
steel wetted parts. - Our Stainless Steel model is constructed of all stainless
steel components for the highest corrosion resist - Variable Spray -Adjusts from soft spray to solid stream by
simply depressing the lever. - Conserves water. Upon release of the lever, operator is
assured of drip-tight shut-off. - Specially formulated rubber-cover is resistant to a wide
range of oils and chemicals, and has ozone resistant
properties. - Replaceable heavy-duty rubber cover protects both nozzle
and surrounding equipment from dings and scratches. - Swivel hose adaptor allows hose to rotate 360º for easy
handling. (Specify hose I.D.) - Rear-mounted lever eases operation on extended periods
of use, and prevents cramping of the fingers. - Stainless steel seats are furnished on all spray nozzles.

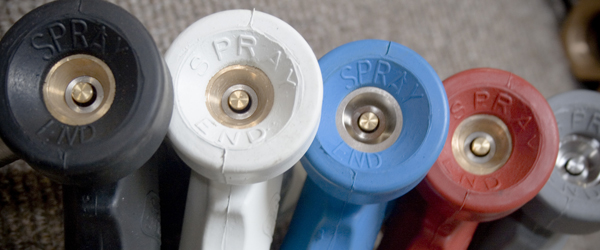

Cover colors available - Black, White, Red & Blue
Comes with
1/2" female npt inlet
Can be ordered with female GHT inlet or 1/2" swivel inlet
Comes with
1/2" female npt inlet
Can be ordered with female GHT inlet or 1/2" swivel inlet
S-151- Junior Size Nozzle
A HEAVY DUTY NOZZLE DOESN'T HAVE TO BE BIG AND HEAVY!
- Almost half the weight of our standard nozzle.
- Downsized by 25% to accomodate smaller hands.
- The "Junior" is constructed of branze & stainless steel, and although smaller
it will withstand the abuse and punishment common to the industrial
environment. - Same exeptional cleaning capability with a substantial reduction in GPM. A
real water saver.
Also available

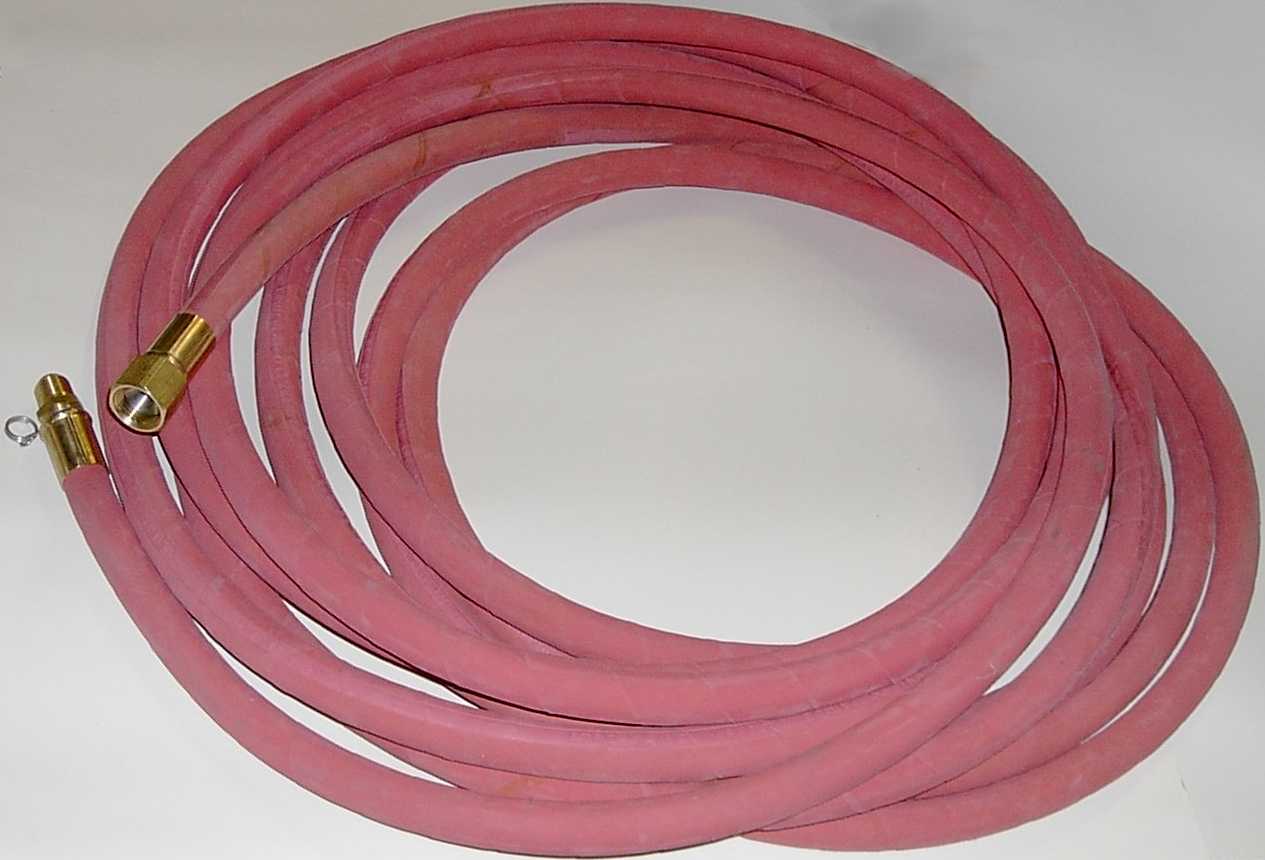

| Washdown Hose and Assemblies |

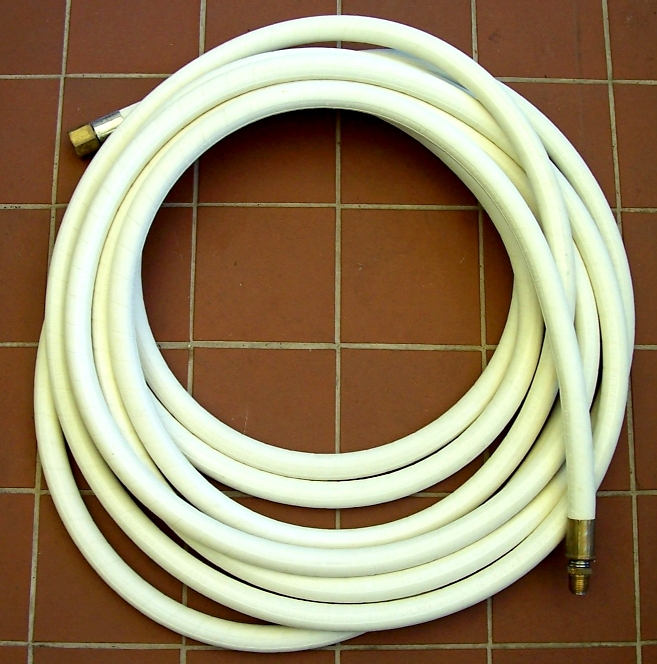

| Streamline's Flex-Master 250 was engineered to be a safe, stable and economical washdown hose. The lightest, easiest handling hose in its pressure class. |
Hose I.D. O.D. WT./FT. 5/8" 1 1/64" .25LBS. Hose No. "A" 50 FT. Hose assembly with S-151 BRONZE NOZZLE "B" 25 FT. Hose assembly with S-151 BRONZE NOZZLE "C" 50 FT. Hose assembly with S-151 ALUMINUM NOZZLE "D" 25 FT. Hose assembly with S-151 ALUMINUM NOZZLE "E" 50 FT. Hose assembly with FITTIINGS & SPRING GUARDS and NO NOZZLE "F" 25 FT. Hose assembly with FITTIINGS & SPRING GUARDS and NO NOZZLE "G" 50 FT. HOSE ONLY LESS FITTINGS & NOZZLE "H" 25 FT. HOSE ONLY LESS FITTINGS & NOZZLE Hose assembly includes with 3/4" npt & Adapter one end and 1/2" npt male swivel other with internal stainless spring guard both ends. Available in White, Red, and Black neoprene cover. Backed by safety margins that exceed the industries standard 4:1 ratio. Rated at 250psi - 200 degree F. |
| Adapters Part Number Description 75x.875 BRHN BRASS HEX NIPPLE ADAPTER - for coupling hose to washdown unit GHT-S 1/2" NPT(m) X 3/4" (f) GARDEN HOSE THREAD (Brass & SST) 360 SWIVEL |
| Replacement nozzle covers and Nozzle repair kits and components Part Number Description 7B COMPLETE BARREL ASSEMBLY (Contians all internal working parts) BRASS 7S COMPLETE BARREL ASSEMBLY (Contians all internal working parts) STAINLESS STEEL 12-PK "O" RINGS (12 Pack) FOR BARREL ASSEMBLY 4B DURA-GUARD RUBBER COVER - BLACK 4BL DURA-GUARD RUBBER COVER - BLUE 4G DURA-GUARD RUBBER COVER - GREY 4R DURA-GUARD RUBBER COVER - RED 4W DURA-GUARD RUBBER COVER - WHITE 5B THRUST COLLAR, BRASS 5S THRUST COLLAR, STAINLESS STEEL 6A END ADAPTOR 2L LEVER 3BB BOLT & BUSHING 8LR LEVER LOCK RING BB BRASS BODY BS STAINLESS STEEL BODY |
| Hose Barb Fittings Part Number Description 50-S 1/2" NPT X 1/2" HOSE BARB (Brass & SST) 360 SWIVEL 50-SSS 1/2" NPT X 1/2" HOSE BARB (All Stainless Steel) 360 SWIVEL 625-S 1/2" NPT X 5/8" HOSE BARB (Brass & SST) 360 SWIVEL 625-SSS 1/2" NPT X 5/8" HOSE BARB (All Stainless Steel) 360 SWIVEL 75-S 1/2" NPT X 3/4" HOSE BARB (Brass & SST) 360 SWIVEL 75-SSS 1/2" NPT X 3/4" HOSE BARB (All Stainless Steel) 360 SWIVEL 625-NS 1/2" NPT X 5/8" HOSE BARB (Brass & SST) NON SWIVEL 625-NSS 1/2" NPT X 5/8" HOSE BARB (All Stainless Steel) NON SWIVEL 75-NS 1/2" NPT X 3/4" HOSE BARB (Brass & SST) NON SWIVEL 75-NSS 1/2" NPT X 3/4" HOSE BARB (All Stainless Steel) NON SWIVEL Spring Guard Barb Fittings SGNE Nozzle end fitting with spring guard SGUE Unit end complete 3 pc fitting with spring guard BF10 Brass Ferrulles |
