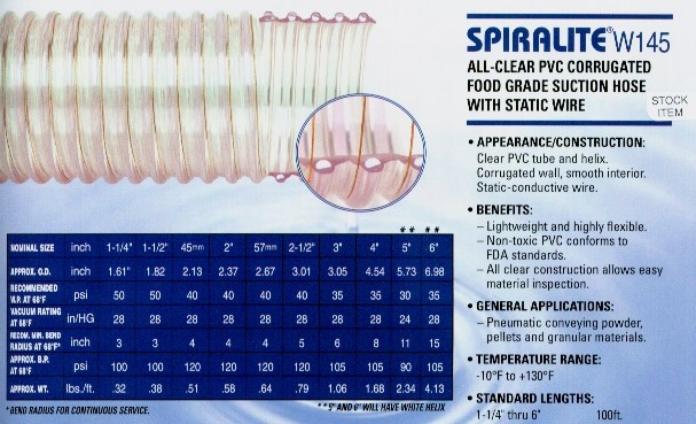

Spiralite W145
ALL-CLEAR PVC CORRUGATED FOOD
GRADE SUCTION HOSE WITH STATIC WIRE

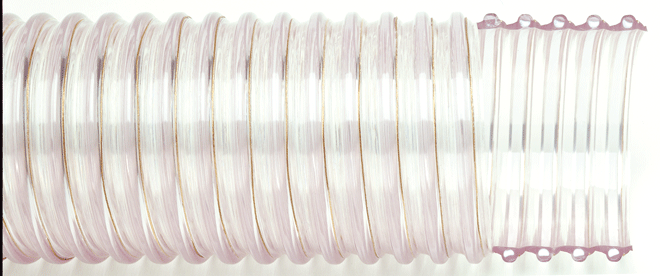

HOSE APPEARANCE / CONSTRUCTION:
Clear PVC tube and helix. Corrugated
wall,smooth interior. Static-conductive wire.


BENEFITS:
-Lightweight and highly flexible.
-Non-toxic PVC conforms to FDA standards.
-All clear construction allows easy material
inspection.


GENERAL APPLICATIONS:
-Pneumatic conveying powder, pellets and
granular materials.


TEMPERATURE RANGE:
-10°F TO +130°F


STANDARD LENGTHS:
1-1/4" thru 6" in 100ft
Nominal size
inch
1-1/4"
1-1/2"
45mm
2"
57mm
2-1/2"
3"
4"
5"
6"
Appox O.D.
inch
1.61
1.82
2.13
2.37
2.67
3.01
3.62
4.54
5.73
6.98
W.P. at 149
PSI
50
50
40
40
40
40
35
35
30
35
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
24
28
Recom. Min. Bend
Radius at 68°F
inch
3
3
4
4
4
5
6
8
11
15
Approx. B.P. at 68°F
PSI
150
150
120
120
120
120
105
105
90
105
Approx. Wt.
lbs./ft
.32
.38
.49
.58
.64
.79
1.06
1.68
2.34
4.13
