Polyurethane Vapor Recovery Hose With Static Wire
Phone  (937) 558-2497
Fax       (937) 698-1247
Code
Number
Inside
Diameter
(Inches)
Outside
Nominal
Diameter
(Inches)
Working
Pressure
PSI@ 72
degrees
Vacuum
Rating
In/Merc@ 72
degrees
Bending
Radius
Minimum
(Inches)
Weight
Per
Foot
(Pounds)
Length
Standard
(Coil Feet
DPG-8
2
2.32
25
21
2.75
.30
100
DPG-12
3
3.38
20
18
4.00
.51
100
DPG-16
4
4.56
15
13
7.00
.88
100

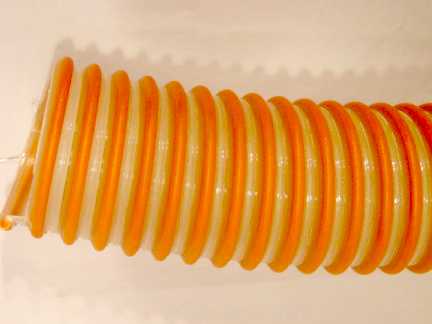

Vapor Recovery Hose With Static Wire
(Clear/Orange Helix - Corrugated Cover)
A lightweight, very flexible hose for gasoline vapor recovery systems. A stranded wire is placed inside helix reinforcement
to serve as a positive ground. Clear tube enables operator to identify accidental backup of product on recovery side of
system.

The
Polyurethane Vapor Recovery Hose with Static Wire is abrasion-resistant and offers extended life over hose made
from ordinary PVC materials. It remains flexible down to -30 degrees F. Stranded ground wire is placed inside orange
helix to assure protection from rough handling. The OD of hose is corrugated.

Construction:
Clear Urethane tube
Orange cover/helix with static ground wire
Temperature Range: -30 to +150 degrees F
