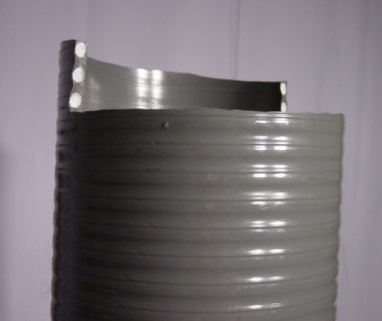

A versatile hose that provides excellent performance at a very low cost. The Commander Hose features
smooth bore PVC tube for excellent material flow rates. Rigid white PVC helix reinforcement provides
excellent working pressures and prevents hose collapse at full vacuum. Smooth gray PVC cover is
abrasion-resistant. DARCOR Commander is the best buy for cost-conscious users.

Construction:
Gray PVC tube and cover
White PVC helix reinforcement
Temperature Range: 0 to +150 degrees F
Commander" Suction & Discharge Hose
(Gray PVC/White Helix Reinforcement)
Code
Number
Inside
Diameter
(Inches)
Outside
Nominal
Diameter
(Inches))
Working
Pressure
PSI@ 72
degrees
Vacuum
Rating
In/Merc@ 72
degrees
Bending
Radius
Minimum
(Inches)
Weight
Per
Foot
(Pounds)
Length
Standard
(Coil Feet)
DC-6
 1-1/2
 1.78
 106
 Full
 4.5
 .41
 100
DC-8
 2
 2.39
 99
 Full
 5
 .58
 100
DC-12
 3
 3.43
 85
 Full
 12
 1.21
 100
DC-16
 4
 4.52
 68
 Full
 16
 1.94
 100
DC-24
 6
 6.57
 47
 Full
 36
 3.03
 25
