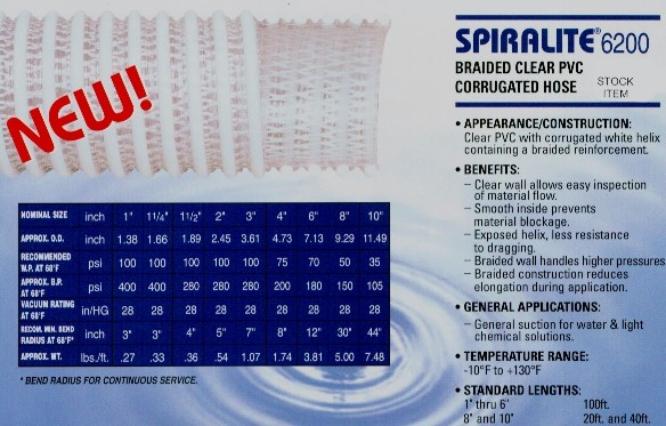

Spiralite 6200
BRAIDED CLEAR PVC CORRUGATED HOSE

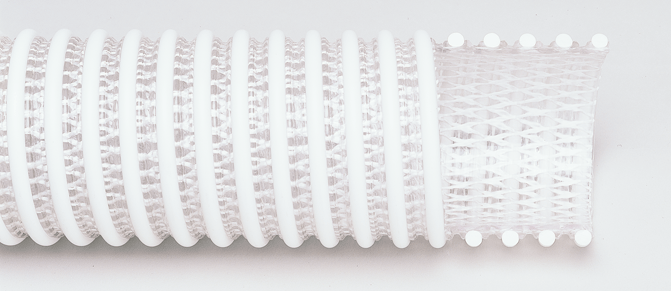

HOSE APPEARANCE/CONSTRUCTION:
Clear PVC with corrugated white helix
containing a braided reinforcement.


BENEFITS:
-Clear wall allows easy inspection of
material flow
-Smooth inside prevents material blockage.
-Exposed helix, less resistance to dragging.
-Braided wall handles higher pressures.
-Braided construction reduces elongation
during applications.


GENERAL APPLICATIONS:
-General suction for water and light chemical
solutions


TEMPERATURE RANGE:
-10°F TO +130°F


STANDARD LENGTHS:
1" thru 6" is 100 feet
8" and above is 20' 25' 30' 35' 40'
Nominal size
inch
1"
1-1/4"
1-1/2"
2"
3"
4"
6"
8"
10"
Appox O.D.
inch
1.38
1.66
1.89
2.45
3.6
4.73
7.13
9.30
11.50
W.P. at 149
PSI
100
100
100
100
100
75
70
50
35
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
Recom. Min. Bend
Radius at 68°F
inch
3
3
4
5
7
8
12
30
44
Approx. B.P. at 68°F
PSI
400
400
280
280
280
200
180
150
105
Approx. Wt.
lbs./ft.
27
.33
.36
.54
1.07
1.74
3.81
5.00
7.48
