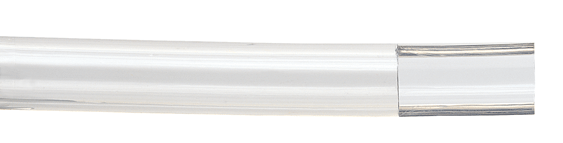

Spiralite 510
PVC CLEAR TUBING


HOSE APPEARANCE / CONSTRUCTION:
Clear PVC tube.


BENEFITS:
-Non-Toxic FDA formula
-Colored tubing available with minimum
orders.


GENERAL APPLICATIONS:
-Water and light chemical transfer
-Approved for use in USDA meat and poultry
plants.


TEMPERATURE RANGE:
-10°F TO +130°F


STANDARD LENGTHS:
1/8" thru 1" - 100ft
1-1/4" thru 2" - 50ft
ID
OD
Wall
Thickness
Maximum W.P.
@ 68°F
Approx. Wt.
lbs/roll
1/8"
1/4"
1/16"
70
2.65
3/16"
5/16"
1/16"
70
3.07
1/4"
3/8"
1/16"
60
3.4
1/4"
7/16"
3/32"
60
5.38
1/4"
1/2"
1/8"
70
8.37
5/16"
7/16"
1/16"
50
4.63
5/16"
1/2"
3/32"
60
7.16
3/8"
1/2"
1/16"
50
5.58
3/8"
9/16"
3/32"
55
8.18
3/8"
5/8"
1/8"
60
11.55
1/2"
5/8"
1/16"
40
7.39
1/2"
3/4"
1/8"
50
13.14
9/16"
7/8"
5/32"
45
18.79
5/8"
7/8"
5/32"
45
15.81
3/4"
1"
1/8"
35
18.6
7/8"
1-1/8"
1/8"
35
21
1"
1-1/4"
1/8"
30
23.8
1-1/4"
1-3/4"
1/4"
50
33.6
1-1/2"
2"
1/4"
40
42.9
2"
2-3/8"
3/16"
25
38.2
