Spiralite 410
PVC CLEAR BRAIDED HOSE

HOSE APPEARANCE / CONSTRUCTION:

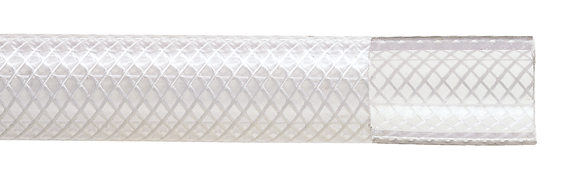

Clear PVC tube with braided reinforcement.


BENEFITS:
-Non-Toxic FDA formula


GENERAL APPLICATIONS:
-Transferring liquids and air.
-Food processing.
-Approved for use in USDA meat and poultry
plants.


TEMPERATURE RANGE:
-10°F TO +130°F


STANDARD LENGTHS:
1/4' thru 3/4" 300ft
1" thru 2" 100ft
Nominal size
inch
3/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
1-1/2"
2"
I.D.
inch
.19291
33/128
.31496
49/128
33/64
81/128
49/64
1"
1-1/4"
1-1/2"
2"
O.D.
inch
.40551
15/32
.53543
5/8"
3/4"
7/8"
1-1/32
1-5/16
1-3/4"
2"
2-1/2
Max W.P. at 70°F
PSI
250
250
200
200
200
200
150
125
100
75
75
Design Burst
Pressure at 70°F
inch
1000
1000
800
800
800
800
600
500
400
300
300
Approx. Wt. lbs./roll
lbs./ft.
16.4
19.5
24.7
32
38
45
61
32
63
74
95
