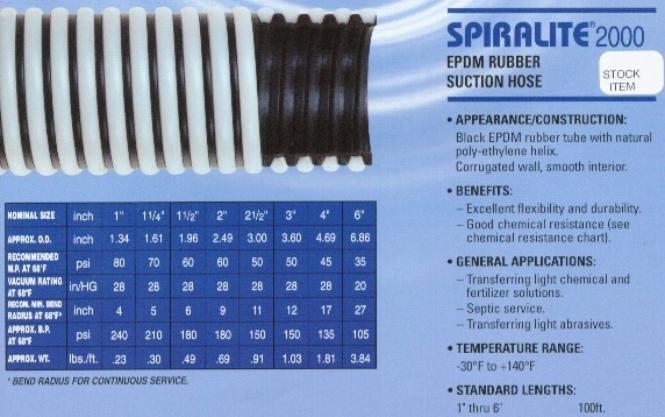

Spiralite 2000
EPDM RUBBER SUCTION HOSE

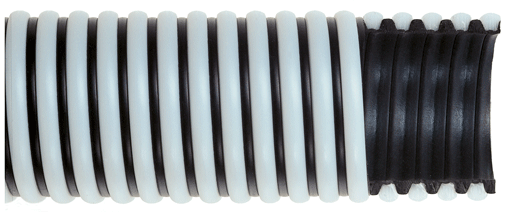

APPEARANCE/CONSTRUCTION:
Black EPDM rubber tube with natural
poly-ethylene helix Corrugated wall, smooth
interior


BENEFITS:
-Excellent flexibility and surability.
-Good chemical resistance (see chemical
resistance chart).


GENERAL APPLICATIONS:
-Transfering light chemical and fertilizer
solutions.
-Septic solutions


TEMPERATURE RANGE:
-30°F TO +140°F


STANDARD LENGTHS:
1" thru 6" 100ft
Nominal size
inch
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
6"
Appox O.D.
inch
1.34
1.61
1.96
2.49
3.00
3.60
4.69
6.86
W.P. at 149
PSI
80
70
60
60
50
50
45
35
Vacuum Rating
in/HG
28
28
28
28
28
28
28
20
Recom. Min. Bend
Radius at 68°F
inch
4
5
6
9
11
12
17
27
Approx. B.P. at 68°F
PSI
240
210
180
180
150
150
135
105
Approx. Wt.
lbs./ft.
.23
.30
.49
.69
.91
1.205
1.83
3.84
