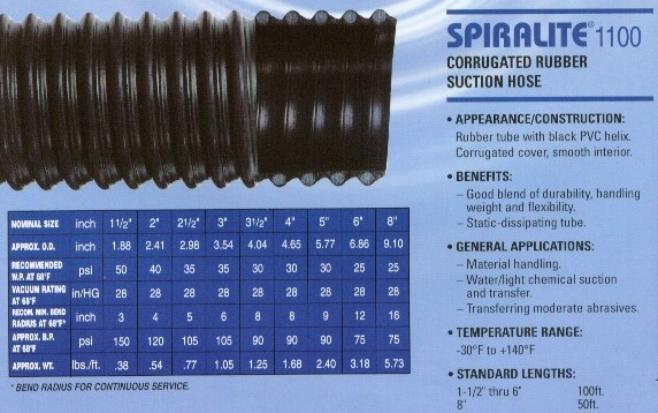

Spiralite 1100
CORRUGATED RUBBER SUCTION HOSE

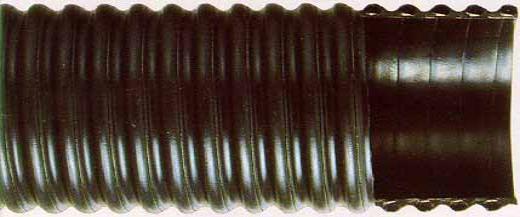

HOSE APPEARANCE / CONSTRUCTION:
Rubber tube with black PVC helix.
Corrugated cover, smooth interior.


BENEFITS:
-Good blend of durability, handling weight
and flexibility.
-Static-dissipating tube.


GENERAL APPLICATIONS:
-Material Handling.
-Water / light chemical suction and transfer.
-Transferring moderate abrasives.


TEMPERATURE RANGE:
-30°F TO +140°F


STANDARD LENGTHS:
1-1/2" thru 6" - 100ft
8" - 50ft
Nominal size
inch
1-1/2"
2"
2-1/2"
3"
3-1/2"
4"
5"
6"
8"
Appox O.D.
inch
1.88
2.41
2.98
3.54
4.04
4.65
5.77
6.86
9.10
W.P. at 149°F
PSI
50
40
35
35
30
30
30
25
25
Vacuum Rating
in/HG
28
28
28
28
28
28
28
28
28
Recom. Min. Bend
Radius at 68°F
inch
3
4
5
6
8
8
9
12
16
Approx. B.P. at 68°F
PSI
150
120
105
105
90
90
80
75
75
Approx. Wt.
lbs./ft.
.38
.54
.77
1.05
1.25
1.68
2.40
3.18
5.73
